Components [10/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Woofer | *B | w/ Tonneau Cover |
| *1 | BATTERY SERVICE HOLE COVER | *2 | DECK BOARD ASSEMBLY |
| *3 | DECK SIDE TRIM BOX LH | *4 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *5 | REAR DECK FLOOR BOX | *6 | REAR FLOOR FINISH PLATE |
| *7 | TONNEAU COVER ASSEMBLY | - | - |
Fig 2: Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specifications [10/2021 - ] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for LH Side | *B | for RH Side |
| *C | for Gasoline Model | *D | for HV Model |
| *E | w/ Rear Automatic Air Conditioning System | - | - |
| *1 | COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR | *2 | DECK TRIM POCKET COVER |
| *3 | DECK TRIM SIDE PANEL ASSEMBLY LH | *4 | DECK TRIM SIDE PANEL ASSEMBLY RH |
| *5 | FRONT DECK SIDE TRIM COVER LH | *6 | FRONT DECK SIDE TRIM COVER RH |
| *7 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *8 | NO. 2 DECK SIDE TRIM COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP | *10 | REAR DOOR SCUFF PLATE |
| *11 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY | *12 | REAR OUTER SEAT TRACK BRACKET COVER |
| *13 | REAR SEAT OUTER BELT ASSEMBLY | *14 | ROPE HOOK |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

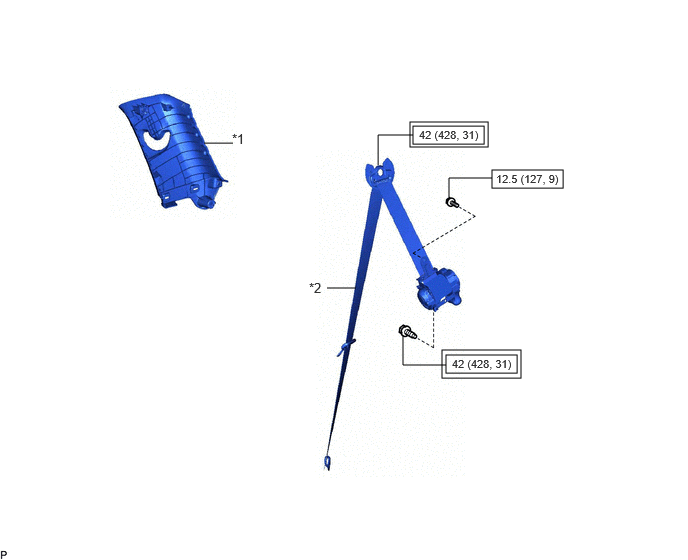

Fig 3: Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specifications [10/2021 - ] (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | QUARTER PILLAR GARNISH | *2 | REAR SEAT OUTER BELT ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
