Components [12/2019 - ]

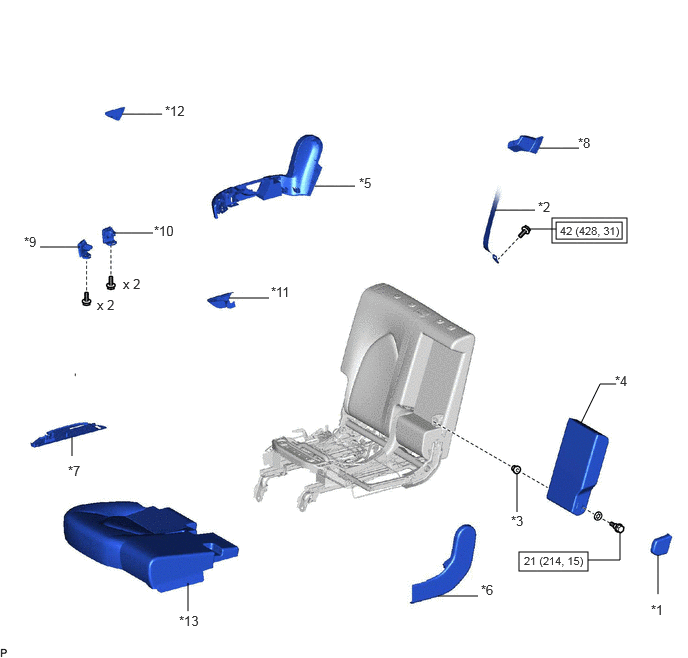

Fig 1: Rear Center Seat Outer Belt Assembly (For Rear No. 1 Seat) Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER ARMREST HINGE COVER | *2 | REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY |
| *3 | REAR SEAT ARMREST HINGE SHIM | *4 | REAR SEAT CENTER ARMREST ASSEMBLY |
| *5 | REAR SEAT CUSHION MOULDING RH | *6 | REAR SEAT CUSHION REAR MOULDING RH |
| *7 | REAR SEAT CUSHION UNDER COVER RH | *8 | REAR SEAT HINGE COVER |
| *9 | REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH | *10 | REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH |
| *11 | RECLINING ADJUSTER RELEASE HANDLE RH | *12 | SEAT ADJUSTER COVER CAP RH |
| *13 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |

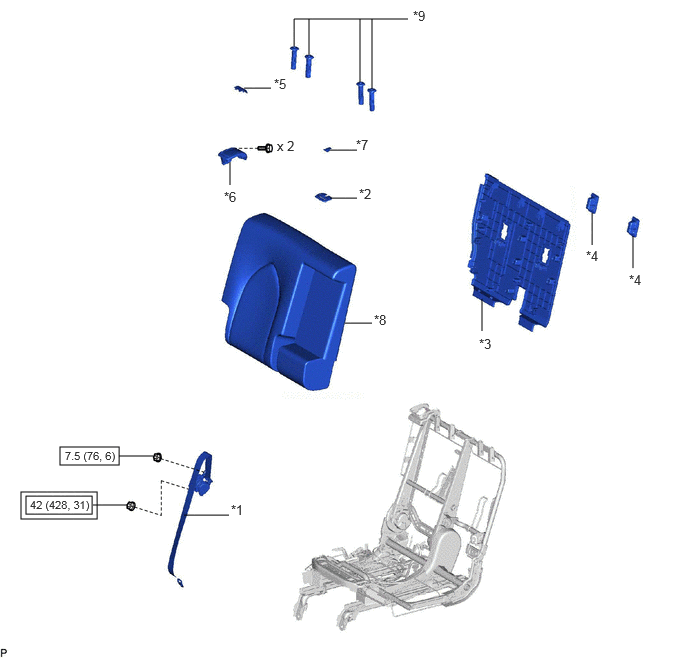

Fig 2: Rear Center Seat Outer Belt Assembly (For Rear No. 1 Seat) Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY | *2 | REAR SEAT SHOULDER BELT COVER |
| *3 | REAR SEATBACK BOARD SUB-ASSEMBLY RH | *4 | REAR SEATBACK COVER RH |
| *5 | REAR SEATBACK LOCK STRIKER COVER | *6 | RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH |
| *7 | SEAT BELT ANCHOR COVER CAP | *8 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
| *9 | REAR SEAT HEADREST SUPPORT | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
