Removal [12/2019 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE REAR NO. 2 SEAT 3 POINT TYPE BELT ASSEMBLY

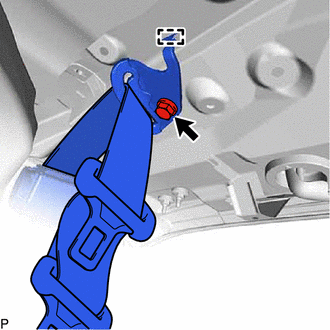

    1. Remove the bolt.
      GTY898635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.

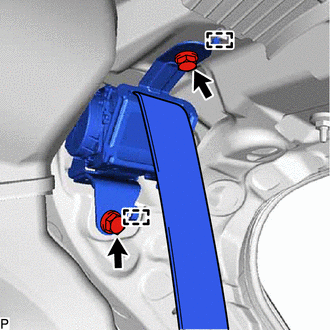

    3. Remove the 2 bolts.
      GTY939501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 guides to remove the rear No. 2 seat 3 point type belt assembly.
