Components [12/2019 - ]

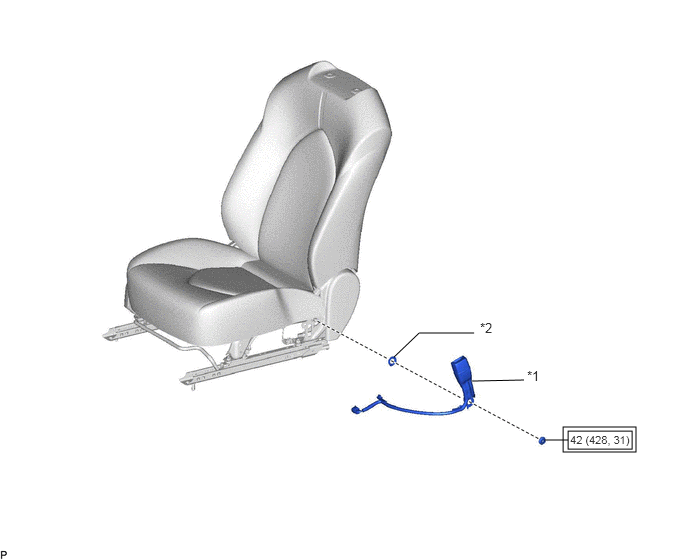

Fig 1: Front Seat Inner Belt Assembly (For Manual Seat) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT SEAT INNER BELT ASSEMBLY RH | *2 | FRONT SEAT BELT ANCHOR PLATE |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
