Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

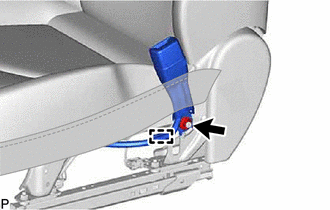

    1. Disengage each clamp under the front seat assembly.
    2. Disconnect the connector.
    3. Remove the nut and front seat inner belt assembly RH.
      GTY898833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

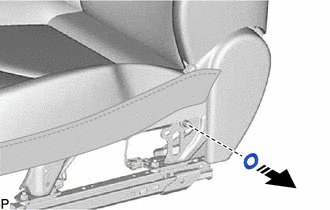

    4. Remove the front seat belt anchor plate as shown in the illustration.
      GTY841573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
