Components [12/2019 - ]

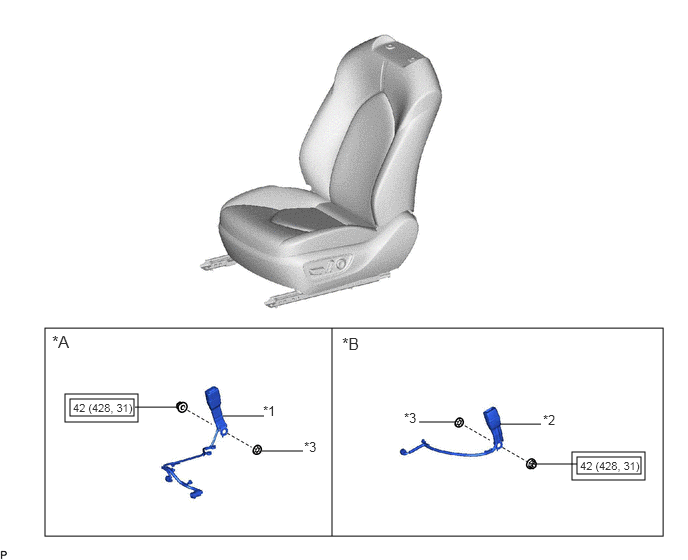

Fig 1: Front Seat Inner Belt Assembly (For Power Seat) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT INNER BELT ASSEMBLY LH | *2 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *3 | FRONT SEAT BELT ANCHOR PLATE | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
