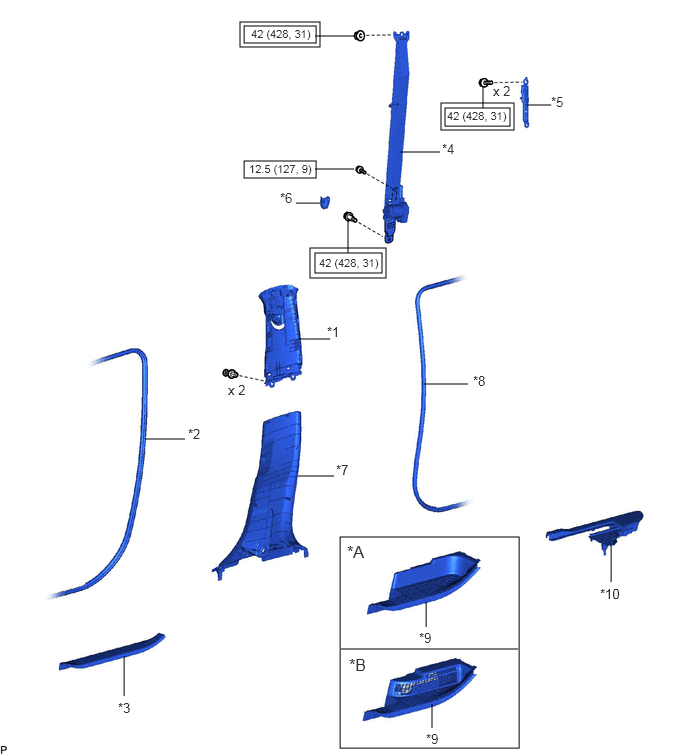

| *A |
for Gasoline Model |
*B |
for HV Model |
| *1 |
CENTER PILLAR GARNISH ASSEMBLY |
*2 |
FRONT DOOR OPENING TRIM WEATHERSTRIP |
| *3 |
FRONT DOOR SCUFF PLATE |
*4 |
FRONT SEAT OUTER BELT ASSEMBLY |
| *5 |
FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY |
*6 |
LAP BELT OUTER ANCHOR COVER |
| *7 |
LOWER CENTER PILLAR GARNISH |
*8 |
REAR DOOR OPENING TRIM WEATHERSTRIP |
| *9 |
REAR DOOR SCUFF PLATE |
*10 |
REAR OUTER SEAT TRACK BRACKET COVER |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
