Components [12/2019 - ]

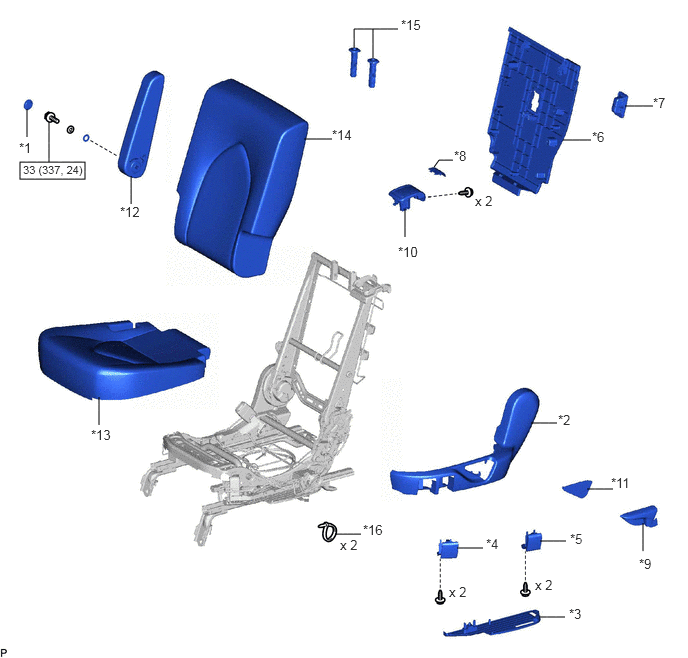

Fig 1: Rear No. 1 Seat Inner Belt Assembly (For Captain Seat Type) Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 SEAT ARMREST CAP | *2 | REAR SEAT CUSHION MOULDING LH |
| *3 | REAR SEAT CUSHION UNDER COVER LH | *4 | REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY LH |
| *5 | REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY LH | *6 | REAR SEATBACK BOARD SUB-ASSEMBLY LH |
| *7 | REAR SEATBACK COVER LH | *8 | REAR SEATBACK LOCK STRIKER COVER LH |
| *9 | RECLINING ADJUSTER RELEASE HANDLE LH | *10 | RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH |
| *11 | SEAT ADJUSTER COVER CAP LH | *12 | SEAT ARMREST ASSEMBLY LH |
| *13 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD | *14 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
| *15 | REAR SEAT HEADREST SUPPORT | *16 | WIRE HARNESS CLAMP |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

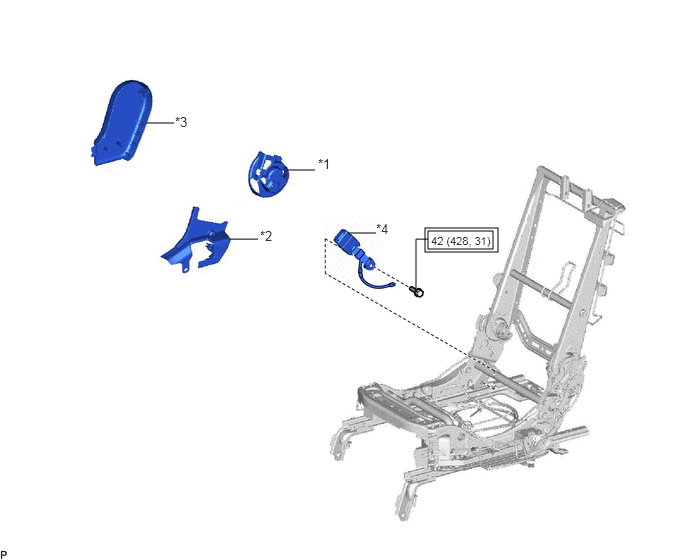

Fig 2: Rear No. 1 Seat Inner Belt Assembly (For Captain Seat Type) Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR NO. 1 SEAT RECLINING COVER RH | *2 | REAR SEAT CUSHION HINGE COVER LH |
| *3 | REAR SEAT CUSHION REAR MOULDING LH | *4 | REAR SEAT INNER BELT ASSEMBLY LH |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
