Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR SEAT CUSHION UNDER COVER LH

    Refer to PROCEDURE - Step 3

  4. REMOVE SEAT ADJUSTER COVER CAP LH

    Refer to PROCEDURE - Step 1

  5. REMOVE REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR SEAT CUSHION MOULDING LH

    Refer to PROCEDURE - Step 7

  8. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR SEATBACK LOCK STRIKER COVER LH

    Refer to PROCEDURE - Step 12

  10. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 13

  11. REMOVE REAR SEATBACK COVER LH

    Refer to PROCEDURE - Step 14

  12. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 15

  13. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 16

  14. REMOVE REAR SEAT CUSHION REAR MOULDING LH

    Refer to PROCEDURE - Step 20

  15. REMOVE REAR NO. 1 SEAT RECLINING COVER RH

    Refer to PROCEDURE - Step 21

  16. REMOVE REAR SEAT CUSHION HINGE COVER LH

    Refer to PROCEDURE - Step 22

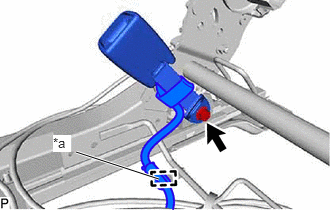

  17. REMOVE REAR SEAT INNER BELT ASSEMBLY LH
    1. Disconnect the connector.
    2. Disengage each clamp.
    3. Disengage the clamp.
      GTY901282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Harness Clamp
    4. Remove the bolt and rear seat inner belt assembly LH.
