Components [12/2019 - ]

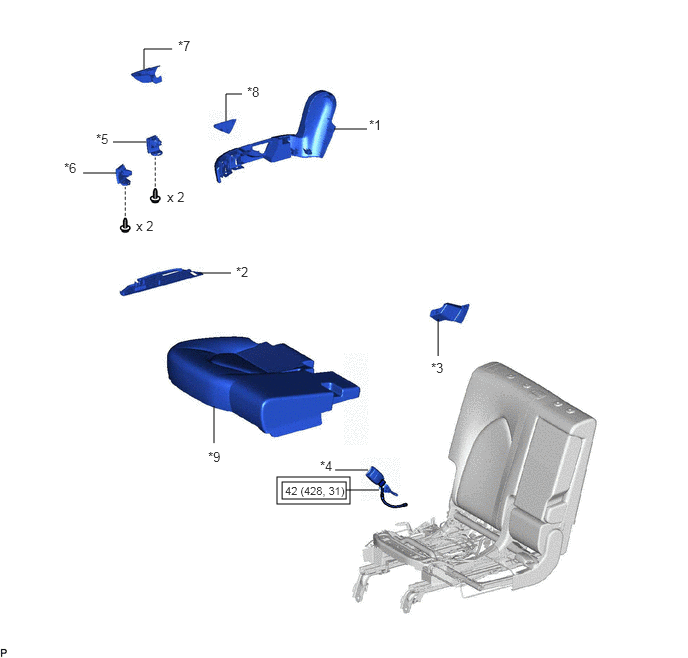

Fig 1: Rear No. 1 Seat Inner Belt Assembly (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR SEAT CUSHION MOULDING RH | *2 | REAR SEAT CUSHION UNDER COVER RH |
| *3 | REAR SEAT HINGE COVER | *4 | REAR SEAT INNER BELT ASSEMBLY RH |
| *5 | REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH | *6 | REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH |
| *7 | RECLINING ADJUSTER RELEASE HANDLE RH | *8 | SEAT ADJUSTER COVER CAP |
| *9 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
