Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

    Refer to PROCEDURE - Step 6

  3. REMOVE REAR SEAT CUSHION UNDER COVER RH

    Refer to PROCEDURE - Step 7

  4. REMOVE SEAT ADJUSTER COVER CAP

    Refer to PROCEDURE - Step 8

  5. REMOVE REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  6. REMOVE REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  7. REMOVE REAR SEAT CUSHION MOULDING RH

    Refer to PROCEDURE - Step 11

  8. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 12

  9. REMOVE REAR SEAT HINGE COVER

    Refer to PROCEDURE - Step 16

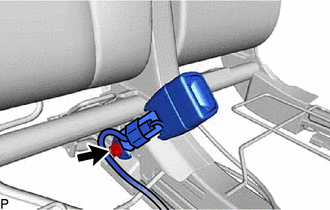

  10. REMOVE REAR SEAT INNER BELT ASSEMBLY RH
    1. Disconnect the connector.
    2. Disengage the clamp.
    3. Loosen the bolt and remove the rear seat inner belt assembly RH.
      GTY898671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The bolt cannot be removed from the rear seat inner belt assembly RH.
