Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE REAR SEAT CUSHION REAR MOULDING RH

    Refer to PROCEDURE - Step 18

  3. REMOVE REAR SEAT INNER BELT ASSEMBLY
    1. Disengage the clamp.
    2. Disconnect the connector.

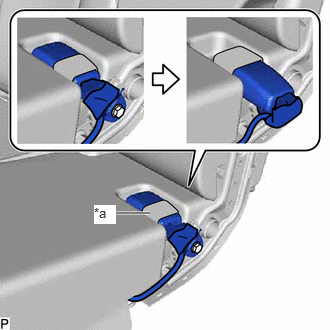

    3. Pass the rear seat inner belt assembly through the rubber band of the separate type rear seat cushion cover with pad as shown in the illustration.
      GTY902911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rubber Band

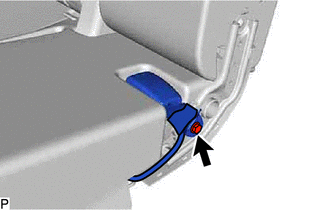

    4. Remove the bolt and rear seat inner belt assembly.
      GTY898632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
