Installation [12/2019 - ]: Procedure

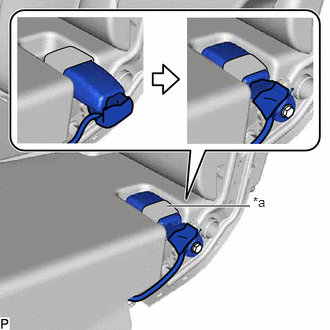

1. Install the rear seat inner belt assembly with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   NOTE:

   Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part of the seatback frame.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protruding Part

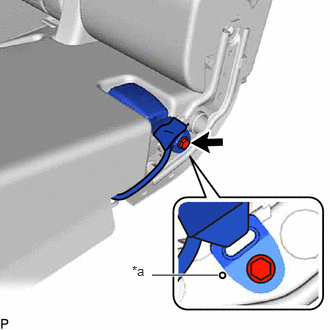

2. Pass the rear seat inner belt assembly through the rubber band of the separate type rear seat cushion cover with pad as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Rubber Band

3. Connect the connector.
4. Engage the clamp.

Refer to PROCEDURE - Step 29

Refer to INSTALLATION [12/2019 - ]
