Installation [12/2019 - ]: Procedure

  1. INSTALL REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY

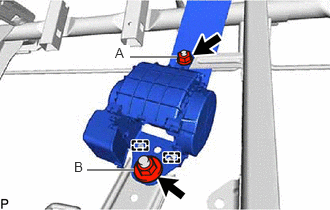

    1. Engage the 2 guides and temporarily install the rear No. 1 seat center lap type belt assembly with the 2 nuts.

      Nut (A)

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

      Nut (B)

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      GTY876697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 20

  3. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 21

  4. INSTALL REAR SEATBACK COVER RH

    Refer to PROCEDURE - Step 25

  5. INSTALL SEAT BELT ANCHOR COVER CAP

    Refer to PROCEDURE - Step 22

  6. INSTALL REAR SEAT SHOULDER BELT COVER

    Refer to PROCEDURE - Step 23

  7. CONNECT REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY

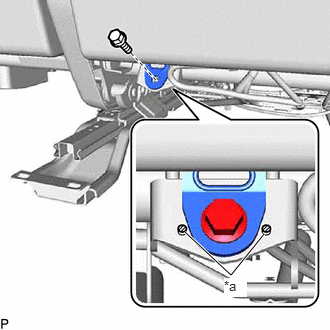

    1. Connect the anchor of the rear No. 1 seat center lap type belt assembly with the bolt.
      GTY874185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protruding Parts

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the rear No. 1 seat center lap type belt assembly to overlap the protruding parts of the seatback frame.

  8. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 26

  9. INSTALL REAR SEATBACK LOCK STRIKER COVER

    Refer to PROCEDURE - Step 27

  10. INSTALL REAR SEAT CUSHION REAR MOULDING RH

    Refer to PROCEDURE - Step 29

  11. INSTALL REAR SEAT HINGE COVER

    Refer to PROCEDURE - Step 12

  12. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 35

  13. INSTALL REAR SEAT CUSHION MOULDING RH

    Refer to PROCEDURE - Step 36

  14. INSTALL REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 37

  15. INSTALL REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 38

  16. INSTALL SEAT ADJUSTER COVER CAP RH

    Refer to PROCEDURE - Step 39

  17. INSTALL REAR SEAT CUSHION UNDER COVER RH

    Refer to PROCEDURE - Step 40

  18. INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

    Refer to PROCEDURE - Step 41

  19. INSTALL REAR SEAT ARMREST HINGE SHIM

    Refer to PROCEDURE - Step 44

  20. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 45

  21. INSTALL CENTER ARMREST HINGE COVER

    Refer to PROCEDURE - Step 46

  22. INSTALL REAR NO. 1 SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]
