Vehicle Identification And Serial Numbers [10/2022 - ]

  1. VEHICLE IDENTIFICATION NUMBER

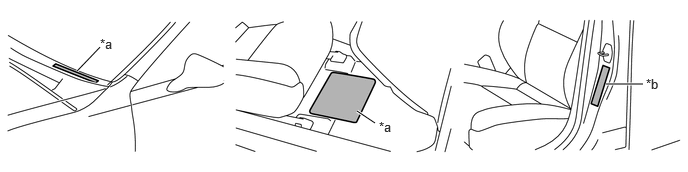

    1. The vehicle identification number is stamped on the vehicle body and on the certification label or name label as shown in the illustration.
      GTY906187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Vehicle Identification Number *b Certification Label or Name Label
  2. ENGINE SERIAL NUMBER AND TRANSMISSION/TRANSAXLE CODE
    1. The engine serial number is stamped on the area shown in the illustration.
      GTY1116492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A A25A-FXS, T24A-FTS
      *a Engine Serial Number
    2. The transmission/transaxle serial number, transmission/transaxle code and transmission/transaxle type are stamped on or embossed onto the area shown in the illustration.
      GTY928392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A P810
      *a Transmission/Transaxle Serial Number
      *b Transmission/Transaxle Code (5NM)
      *c Transmission/Transaxle Type (P810)
      GTY1116738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A UA81E, UA81F
      *a Transmission/Transaxle Serial Number
      GTY867562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Q610
      *a Transmission/Transaxle Code
