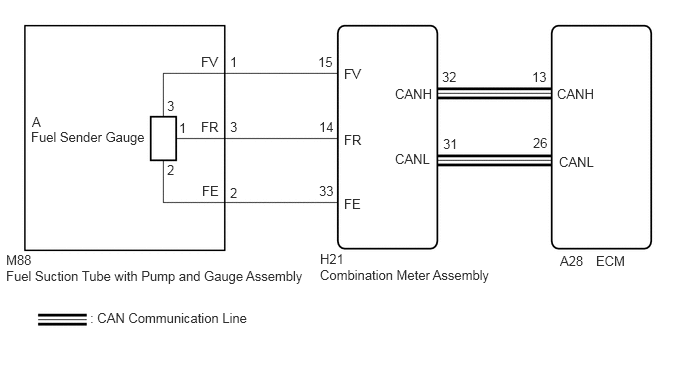

DTC P0460-12: Fuel Level Sensor "A" Circuit Short to Battery; DTC P0460-14: Fuel Level Sensor "A" Circuit Short to Ground or Open [12/2019 - 10/2022]: Wiring Diagram

GTY895119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
