DTC P0460-12: Fuel Level Sensor "A" Circuit Short to Battery; DTC P0460-14: Fuel Level Sensor "A" Circuit Short to Ground or Open [12/2019 - 10/2022]: Procedure

1. Disconnect the fuel suction tube with pump and gauge assembly connector.
2. Disconnect the combination meter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M88-1 (FV) - H21-15 (FV)	Always	Below 1 Ω
   M88-3 (FR) - H21-14 (FR)	Always	Below 1 Ω
   M88-2 (FE) - H21-33 (FE)	Always	Below 1 Ω
   M88-1 (FV) or H21-15 (FV) - Body ground and other terminals	Always	10 kΩ or higher
   M88-3 (FR) or H21-14 (FR) - Body ground and other terminals	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Remove the fuel sender gauge assembly.

   Refer to REMOVAL [12/2019 - 10/2022]

2. Inspect the fuel sender gauge assembly.

   Refer to INSPECTION [12/2019 - 10/2022]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE FUEL SENDER GAUGE ASSEMBLY. Refer to  REMOVAL [12/2019 - 10/2022]

Result:

OK

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

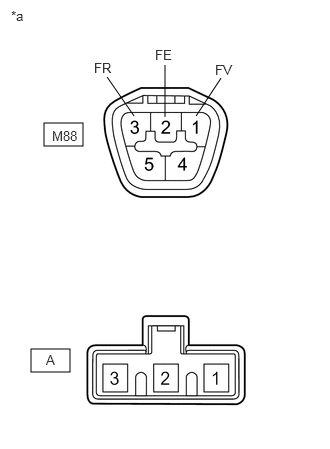

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M88-1 (FV) - A-3	Always	Below 1 Ω
   M88-2 (FE) - A-2	Always	Below 1 Ω
   M88-3 (FR) - A-1	Always	Below 1 Ω
   M88-1 (FV) - M88-3 (FR) or A-3 - A-1	Always	10 kΩ or higher
   M88-1 (FV) - M88-2 (FE) or A-3 - A-2	Always	10 kΩ or higher
   M88-2 (FE) - M88-3 (FR) or A-2 - A-1	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [12/2019 - ]

Result:

NG

REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY. Refer to  REMOVAL [12/2019 - 10/2022]
