Engine Control System (2GR-FKS) - Diagnostic Codes (4 Of 6)
>>
SFI System
>>
DTC P0504-2B: Brake Switch "A"/"B" Signal Cross Coupled [12/2019 - 10/2022]
>>

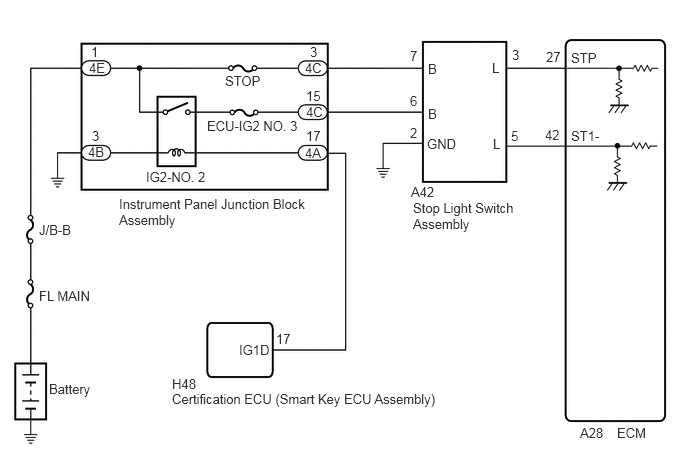

Wiring Diagram
DTC P0504-2B: Brake Switch "A"/"B" Signal Cross Coupled [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
