DTC P0010-13: A Camshaft Position Actuator Bank 1 Circuit Open; DTC P0020-13: Camshaft Position "A" Actuator Bank 2 Circuit Open [12/2019 - 10/2022]: Description

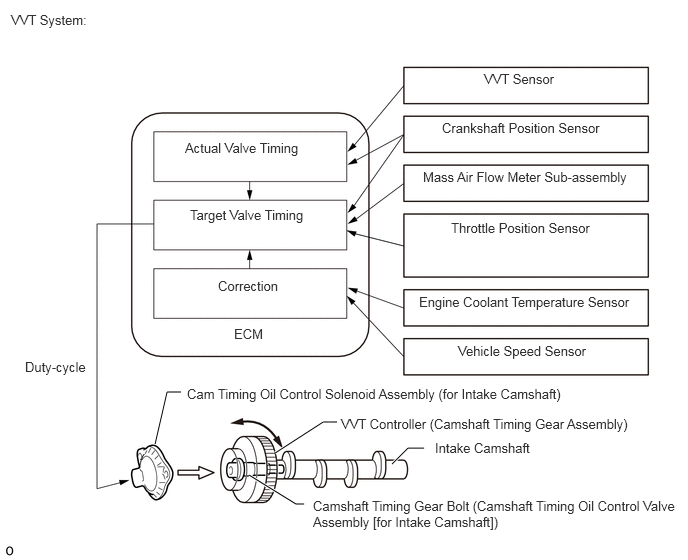

The Variable Valve Timing (VVT) system adjusts the intake valve timing to improve driveability. The engine oil pressure turns the VVT controller to adjust the valve timing.
The cam timing oil control solenoid assembly operates according to signals received from the ECM to control the position of the camshaft timing oil control valve assembly and supply engine oil. The camshaft timing oil control valve assembly moves when the ECM applies 12 V to the cam timing oil control solenoid assembly. The ECM changes the energizing time of the cam timing oil control solenoid assembly (duty-cycle) in accordance with the camshaft position, crankshaft position, throttle position, etc.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P0010-13 | A Camshaft Position Actuator Bank 1 Circuit Open | Open or short in cam timing oil control solenoid assembly (for intake camshaft of bank 1) circuit (1 trip detection logic). |
|
Comes on | DTC stored | SAE Code: P0010 DTC for Mexico Models: - Applies |
| P0020-13 | Camshaft Position "A" Actuator Bank 2 Circuit Open | Open or short in cam timing oil control solenoid assembly (for intake camshaft of bank 2) circuit (1 trip detection logic). |
|
Comes on | DTC stored | SAE Code: P0020 DTC for Mexico Models: - Applies |
