Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (2GR-FKS) - Diagnostic Codes (1 Of 6) >> SFI System >> DTC P0010-13: A Camshaft Position Actuator Bank 1 Circuit Open; DTC P0020-13: Camshaft Position "A" Actuator Bank 2 Circuit Open [12/2019 - 10/2022] >> Wiring Diagram

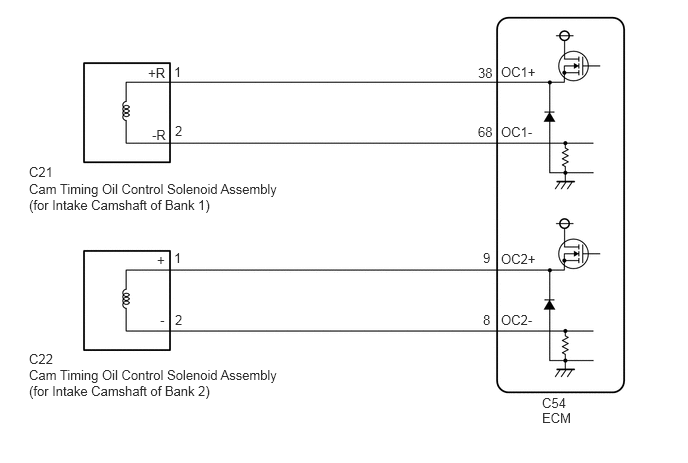

DTC P0010-13: A Camshaft Position Actuator Bank 1 Circuit Open; DTC P0020-13: Camshaft Position "A" Actuator Bank 2 Circuit Open [12/2019 - 10/2022]: Wiring Diagram

GTY839660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
