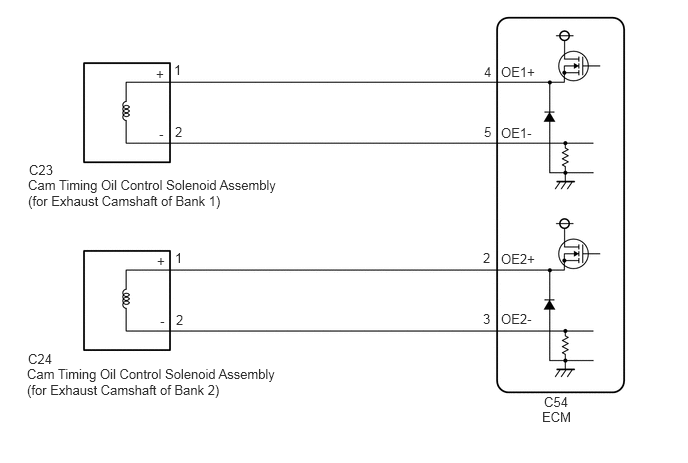

DTC P0013-13: Camshaft Position "B" - Actuator Bank 1 Circuit Open; DTC P0023-13: Camshaft Position "B" - Actuator Bank 2 Circuit Open [12/2019 - 10/2022]: Wiring Diagram

GTY839661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
