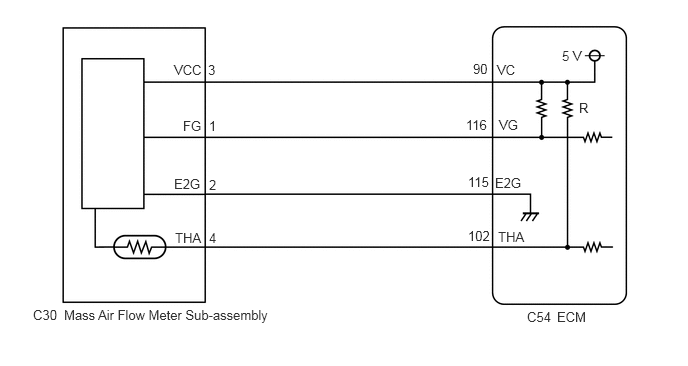

DTC P0100-12: Mass or Volume Air Flow Sensor "A" Circuit Short to Battery; DTC P0100-14: Mass or Volume Air Flow Sensor "A" Circuit Short to Ground or Open [12/2019 - 10/2022]: Wiring Diagram

GTY897342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
