Parts Location [12/2019 - 10/2022]: Illustration

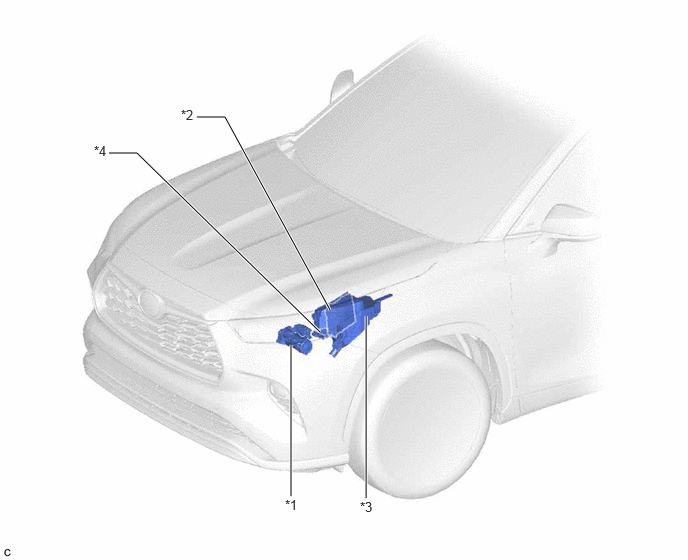

GTY871474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STARTER ASSEMBLY *2 ECM
*3 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- ST RELAY
- ST NO. 1 FUSE
- ST NO. 2 FUSE
(w/ Stop And Start System)		 *4 PARK/NEUTRAL POSITION SWITCH ASSEMBLY

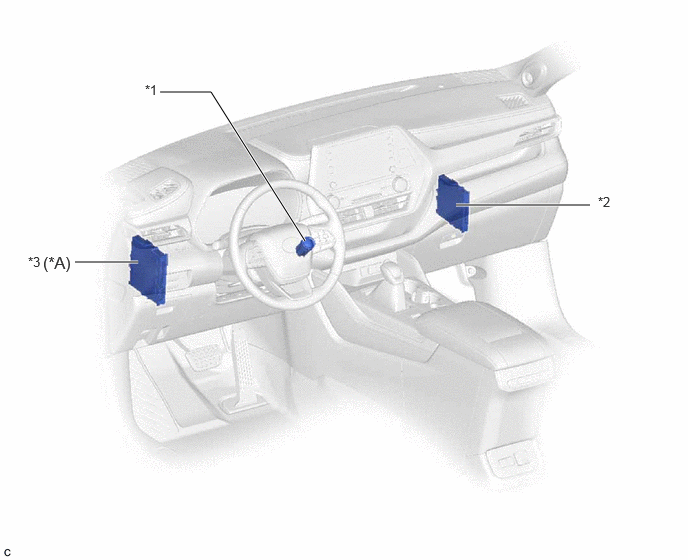

GTY887345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Stop And Start System - -
*1 ENGINE SWITCH *2 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*3 ENGINE STOP AND START ECU - -
