Components [12/2019 - 10/2022]

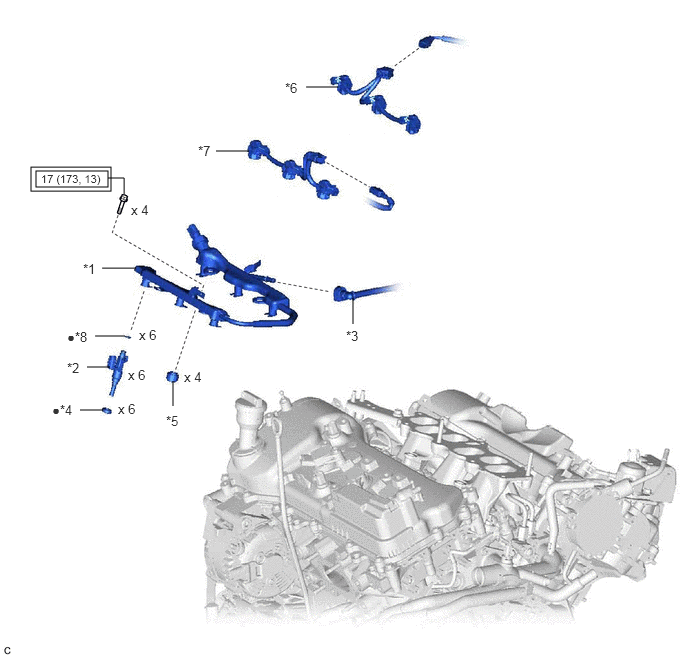

Fig 1: Fuel Injector (For Port Injection) Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY | *2 | PORT FUEL INJECTOR ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | INJECTOR VIBRATION INSULATOR |
| *5 | NO. 1 DELIVERY PIPE SPACER | *6 | NO. 5 ENGINE WIRE (for Bank 1) |
| *7 | NO. 5 ENGINE WIRE (for Bank 2) | *8 | O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
