Components [12/2019 - 10/2022]

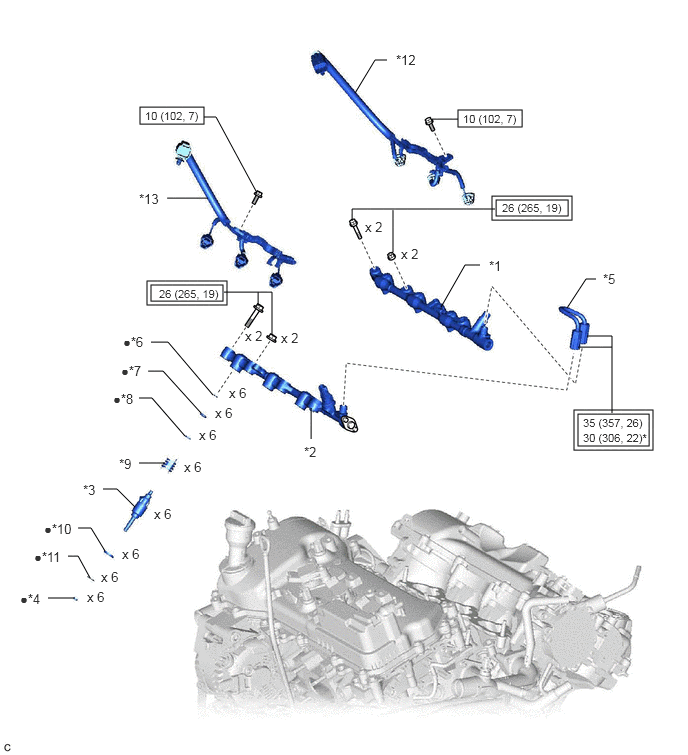

Fig 1: Fuel Injector (For Direct Injection) Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL DELIVERY PIPE RH | *2 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH |
| *3 | DIRECT FUEL INJECTOR ASSEMBLY | *4 | FUEL INJECTOR SEAL |
| *5 | NO. 2 FUEL PIPE SUB-ASSEMBLY | *6 | NO. 3 FUEL INJECTOR BACK-UP RING |
| *7 | O-RING | *8 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *9 | NOZZLE HOLDER CLAMP | *10 | INJECTOR VIBRATION INSULATOR |
| *11 | C-RING | *12 | NO. 6 ENGINE WIRE |
| *13 | NO. 7 ENGINE WIRE | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| * | For use with a union nut wrench | • | Non-reusable part |
