Fuel Main Valve
>>
Components [12/2019 - 10/2022]
Components [12/2019 - 10/2022]

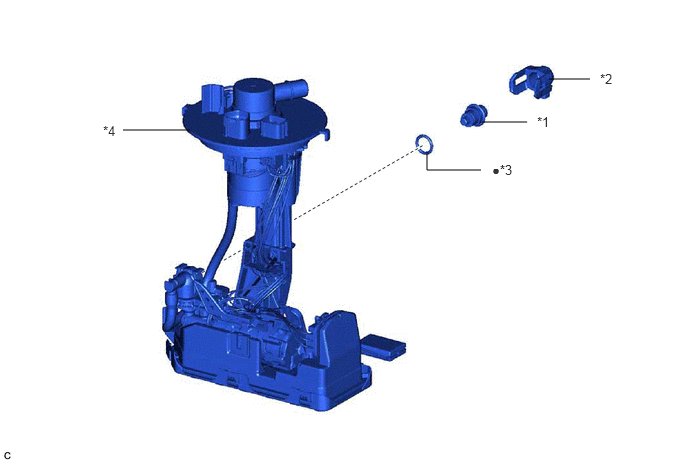

Fig 1: Fuel Main Valve Replacement Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
FUEL MAIN VALVE ASSEMBLY
*2
FUEL PRESSURE REGULATOR HOLDER
*3
O-RING
*4
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
•
Non-reusable part
-
-
