Removal [12/2019 - 10/2022]: Procedure

Refer to REMOVAL [12/2019 - 10/2022]

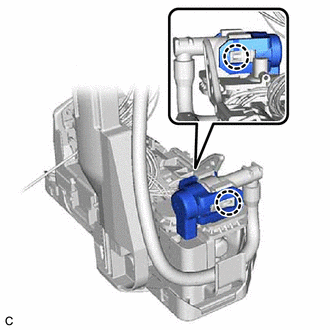

1. Disengage the 2 claws and remove the fuel pressure regulator holder from the fuel suction tube with pump and gauge assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

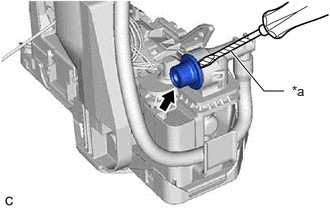

1. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel suction tube with pump and gauge assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   • Pull out the fuel main valve assembly carefully because the O-ring is firmly installed between the fuel main valve assembly and fuel suction tube with pump and gauge assembly.
   • Do not damage the fuel suction tube with pump and gauge assembly.
2. Remove the O-ring from the fuel main valve assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	O-ring
   *a	Mesh
   *b	Mini-clip

   NOTE:

   Do not remove the mesh and mini-clip from the fuel main valve assembly.
