Components [12/2019 - 10/2022]

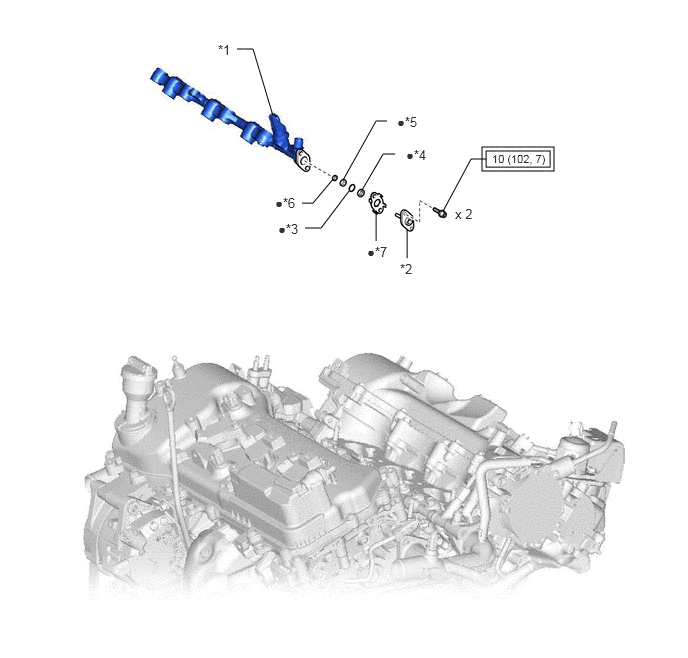

Fig 1: Fuel Pressure Sensor (For High Pressure) Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH) | *2 | FUEL PIPE PLUG SUB-ASSEMBLY |
| *3 | O-RING | *4 | NO. 1 FUEL INJECTOR BACK-UP RING |
| *5 | NO. 2 FUEL INJECTOR BACK-UP RING | *6 | NO. 3 FUEL INJECTOR BACK-UP RING |
| *7 | GASKET | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
