Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH)

    Refer to REMOVAL [12/2019 - 10/2022]

    NOTE:
    • Do not remove the fuel pressure sensor from the fuel delivery pipe with sensor assembly LH.
    • If the fuel pressure sensor is removed, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly LH) with a new one.
  2. REMOVE FUEL PIPE PLUG SUB-ASSEMBLY

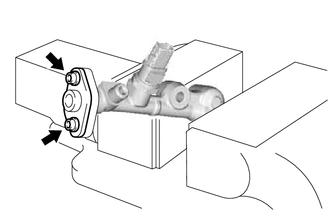

    1. Secure the fuel delivery pipe with sensor assembly LH in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

      GTY913666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 5 mm hexagon socket wrench, remove the 2 bolts, gasket and fuel pipe plug sub-assembly from the fuel delivery pipe with sensor assembly LH.
    3. Remove the O-ring, No. 1 fuel injector back-up ring, No. 2 fuel injector back-up ring and No. 3 fuel injector back-up ring from the fuel pipe plug sub-assembly.
    4. Remove the fuel delivery pipe with sensor assembly LH from the vise.
