Components [12/2019 - 10/2022]

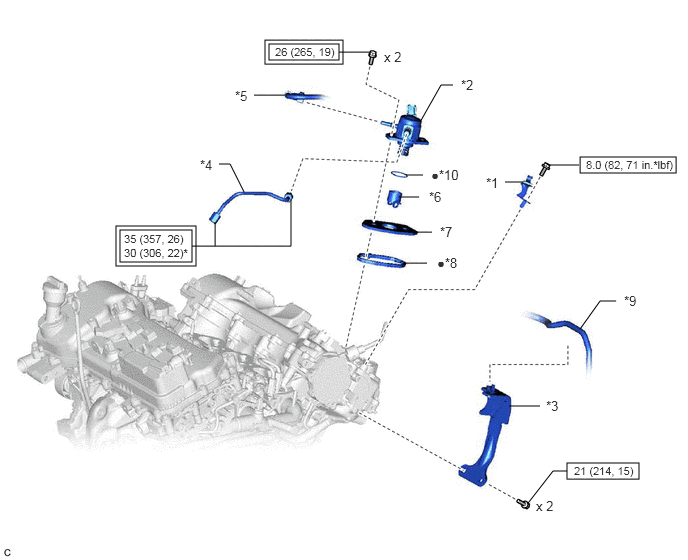

Fig 1: Fuel Pump (For High Pressure) Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL HOSE BRACKET | *2 | FUEL PUMP ASSEMBLY |
| *3 | FUEL PUMP PROTECTOR | *4 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL TUBE SUB-ASSEMBLY | *6 | FUEL PUMP LIFTER ASSEMBLY |
| *7 | FUEL PUMP LIFTER GUIDE | *8 | FUEL PUMP SPACER GASKET |
| *9 | FUEL TUBE SUB-ASSEMBLY | *10 | O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| * | For use with a union nut wrench | • | Non-reusable part |
