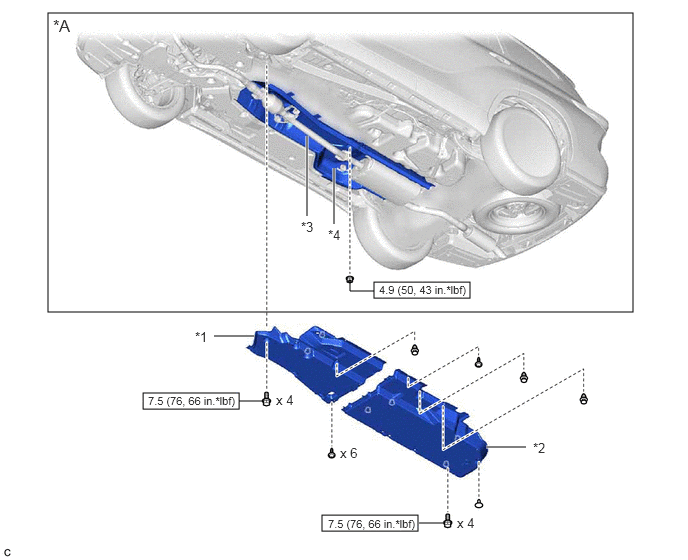

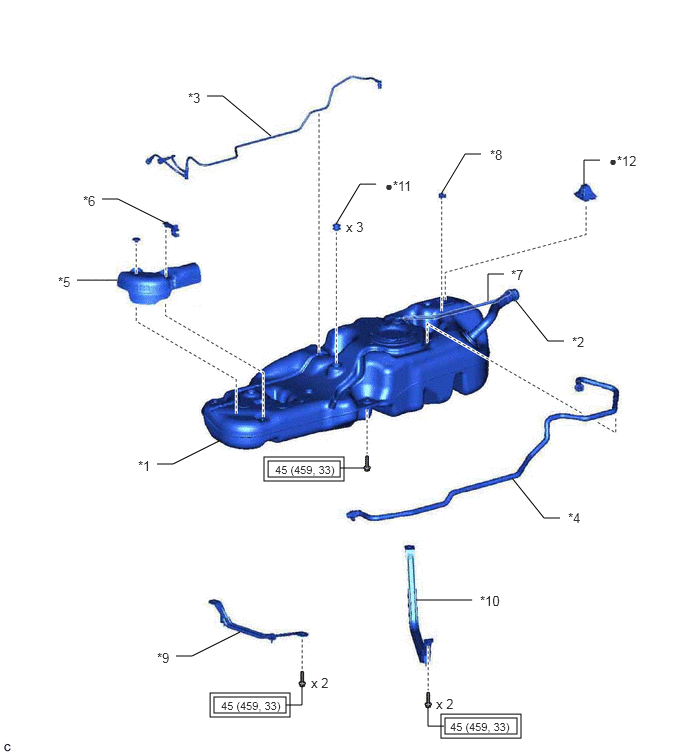

| *1 |
FUEL TANK SUB-ASSEMBLY |
*2 |
LOWER FUEL TANK FILLER PIPE SUB-ASSEMBLY |
| *3 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
*4 |
FUEL TANK EVAPORATION VENT TUBE SUB-ASSEMBLY |
| *5 |
NO. 2 FUEL TANK PROTECTOR |
*6 |
NO. 1 FUEL TUBE CLAMP |
| *7 |
FUEL TANK BREATHER TUBE SUB-ASSEMBLY |
*8 |
NO. 2 FUEL TUBE CLAMP |
| *9 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY |
*10 |
NO. 2 FUEL TANK BAND SUB-ASSEMBLY |
| *11 |
NO. 6 FUEL TANK CUSHION |
*12 |
NO. 1 FUEL TANK CUSHION |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
• |
Non-reusable part |
