Components [12/2019 - 10/2022]

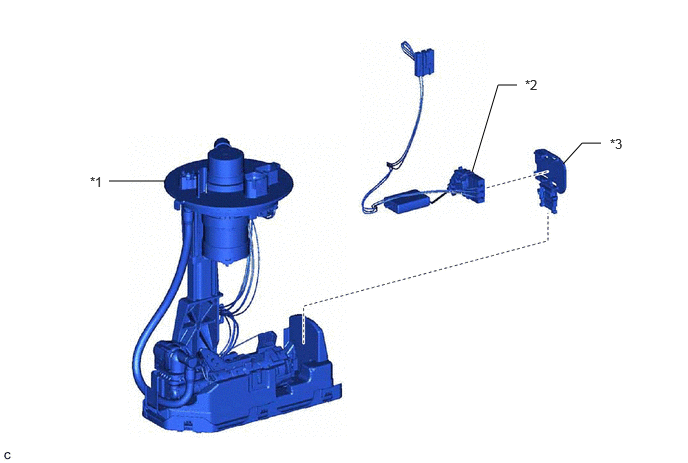

Fig 1: Fuel Sender Gauge Assembly Replacement Components [12/2019 - 10/2022]
GTY1002302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY *2 FUEL SENDER GAUGE ASSEMBLY
*3 FUEL GAUGE BRACKET - -
