Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

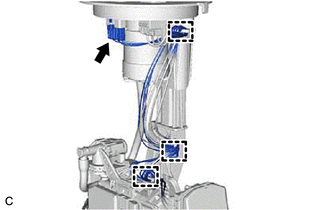

    1. Disconnect the fuel sender gauge assembly connector.
      GTY936992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.
      NOTE:
      • Do not damage the wire harness.
      • When disengaging each wire harness from the clamp, disengage one wire at a time.

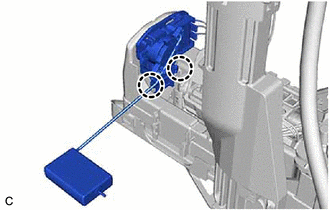

    3. Disengage the 2 claws to remove the fuel gauge bracket with fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.
      GTY1001434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to bend the arm of the fuel sender gauge assembly.

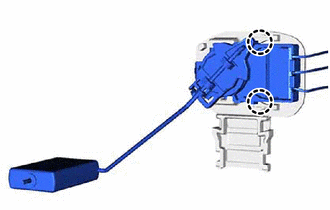

    4. Disengage the 2 claws to remove the fuel sender gauge assembly from the fuel gauge bracket.
      GTY1001435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
