Parts Location [12/2019 - 10/2022]: Illustration

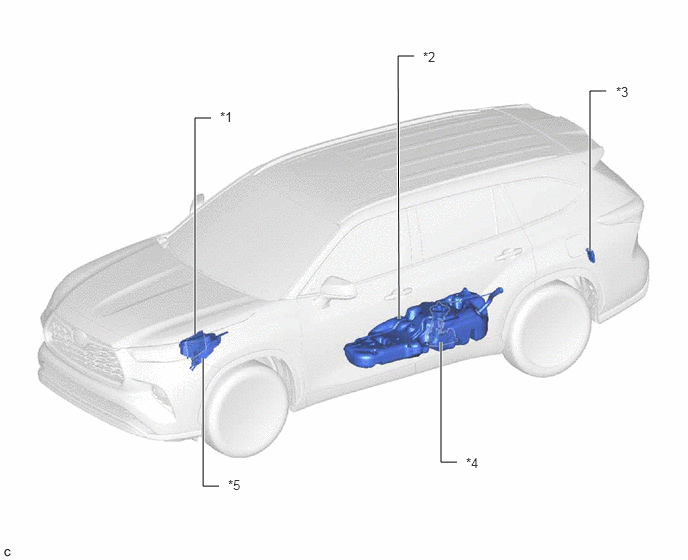

GTY872191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 FUEL TANK SUB-ASSEMBLY
*3 FUEL PUMP CONTROL ECU *4 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
- FUEL PUMP (for Low Pressure)
- FUEL SENDER GAUGE ASSEMBLY
- FUEL MAIN VALVE ASSEMBLY
*5 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- FUEL PMP RELAY
- IG2 NO. 1 RELAY
- EFI-MAIN RELAY
- INJ FUSE
- FUEL PMP FUSE		 - -

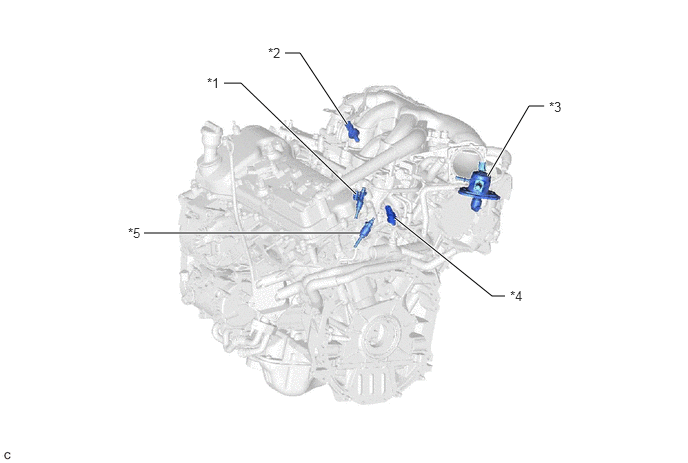

GTY700192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 PORT FUEL INJECTOR ASSEMBLY *2 FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY) (for Low Pressure)
*3 FUEL PUMP ASSEMBLY (for High Pressure) *4 FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH) (for High Pressure)
*5 DIRECT FUEL INJECTOR ASSEMBLY - -
