System Diagram [12/2019 - 10/2022]

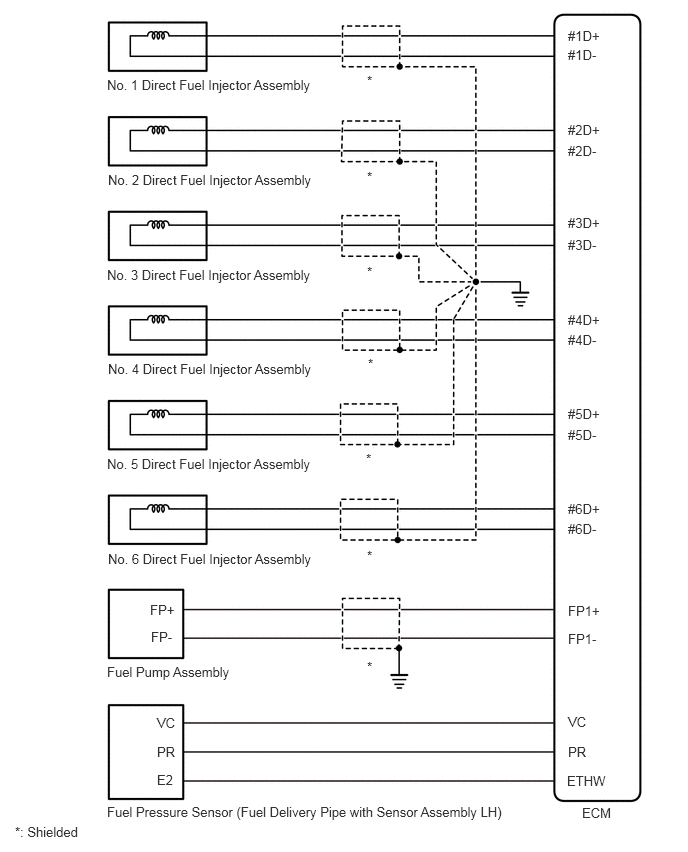

  1. HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM
    GTY875807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

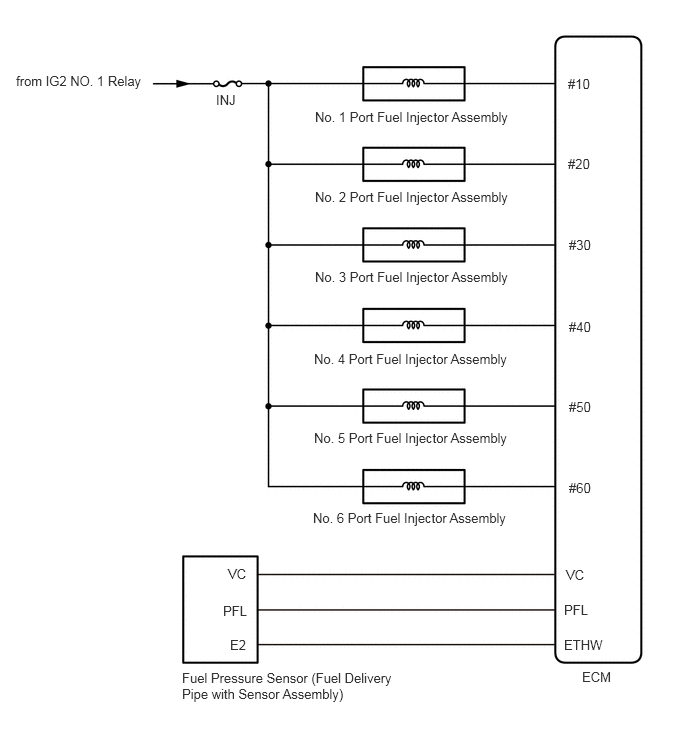

  2. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM
    GTY788005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

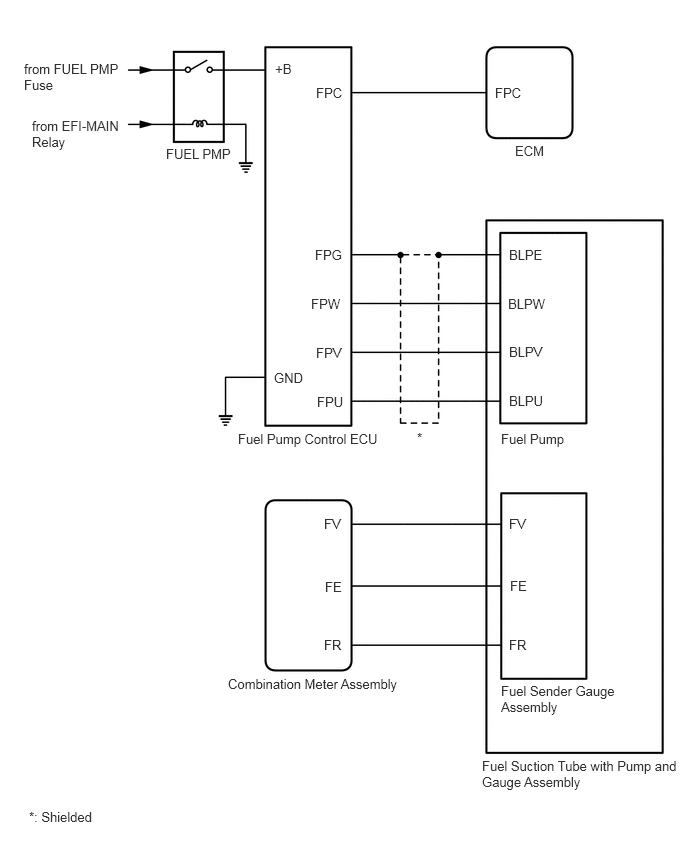

    GTY856432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
