Components [12/2019 - 10/2022]

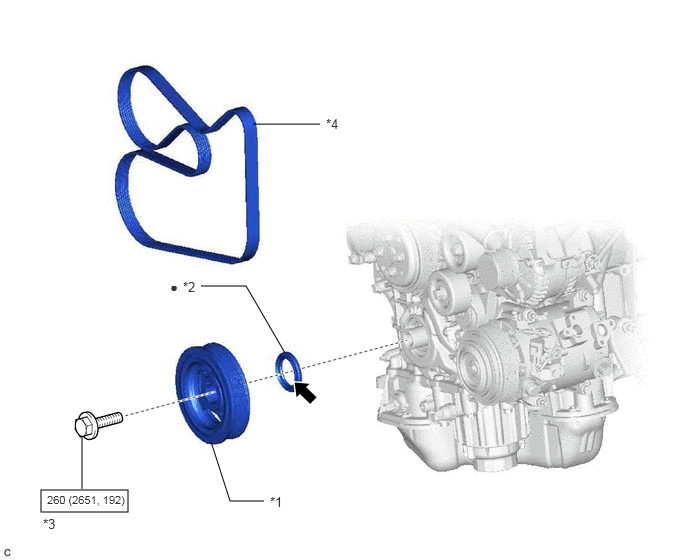

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CRANKSHAFT PULLEY | *2 | TIMING CHAIN CASE OIL SEAL |
| *3 | CRANKSHAFT PULLEY SET BOLT | *4 | V-RIBBED BELT |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
MP grease | - | - |
