Components [12/2019 - 10/2022]

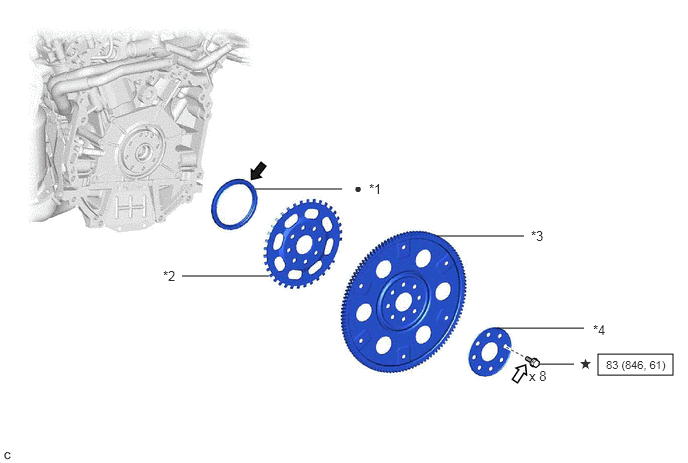

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE OIL SEAL | *2 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
| *3 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *4 | REAR DRIVE PLATE SPACER |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
MP grease | |
Adhesive 1324 |
| * | Precoated part | - | - |
