Components [12/2019 - ]

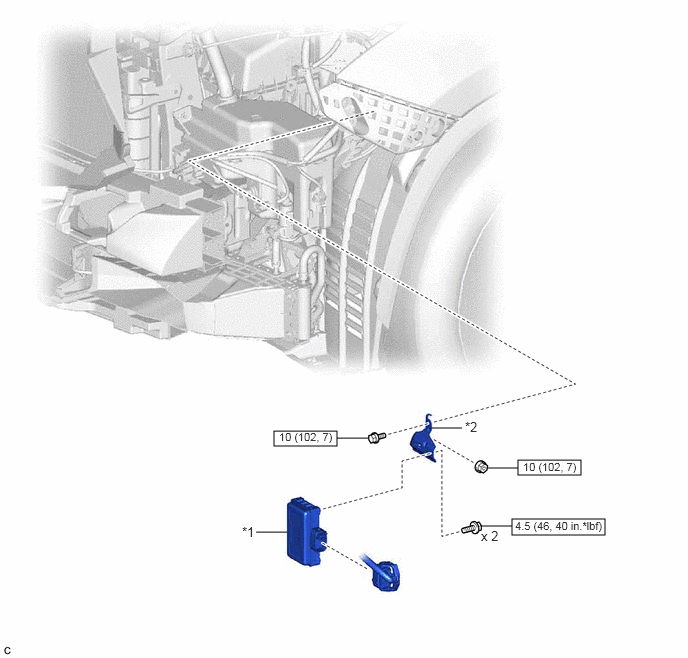

Fig 1: Backup Boost Converter Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ECO RUN VEHICLE CONVERTER ASSEMBLY	*2	NO. 1 CONVERTER CONTROL BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
