Installation [12/2019 - ]: Procedure

  1. INSTALL VACUUM SENSOR GROMMET
    1. Install a new vacuum sensor grommet to the brake booster assembly.
  2. INSTALL VACUUM SENSOR ASSEMBLY

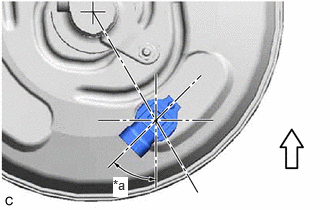

    1. Install the vacuum sensor assembly to the brake booster assembly so that the vacuum sensor assembly is angled as shown in the illustration.
      GTY926362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°+/-20°
      Up
    2. Connect the vacuum sensor assembly connector to the vacuum sensor assembly.
  3. INSTALL BATTERY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
