Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO. 1

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE ENGINE STOP AND START SOLENOID FILTER

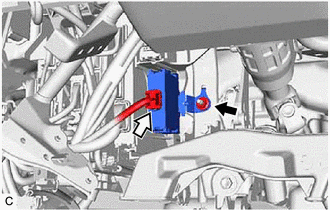

    1. Disconnect the engine stop and start solenoid filter connector.
      GTY902758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and engine stop and start solenoid filter.
