Stop And Start System - Diagnostic Codes (2 Of 3)
>>
Stop And Start System
>>
DTC P2530-14: Ignition Switch Circuit Short to Ground or Open [10/2022 - 11/2023]
>>

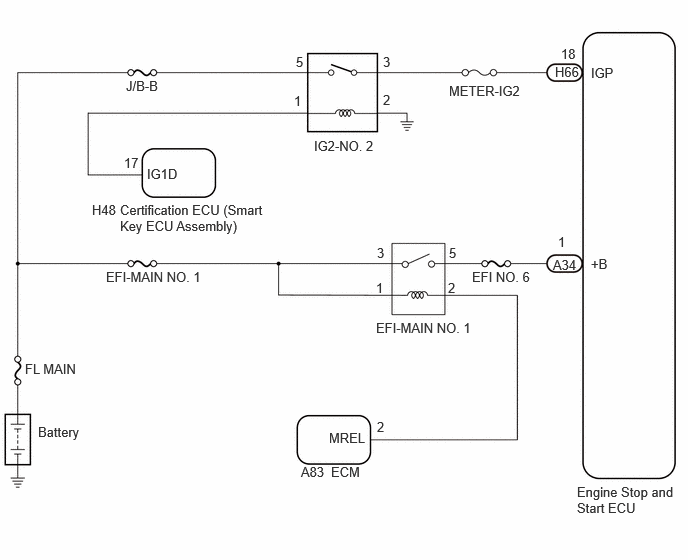

Wiring Diagram
DTC P2530-14: Ignition Switch Circuit Short to Ground or Open [10/2022 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
