DTC P2530-14: Ignition Switch Circuit Short to Ground or Open [10/2022 - 11/2023]: Procedure

  1. READ VALUE USING GTS (IG SWITCH)
    1. According to the display on the GTS, read the Data List.

      Powertrain > Stop and Start > Data List

      Tester Display
      IG Switch

      Result

      Tester Display Result Proceed to
      IG Switch ON A
      OFF B

    Result:

    A

    USE SIMULATION METHOD TO CHECK

    Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]

    Result:

    B

    See step  2

  2. CHECK ENGINE STOP AND START ECU (IGP TERMINAL VOLTAGE)

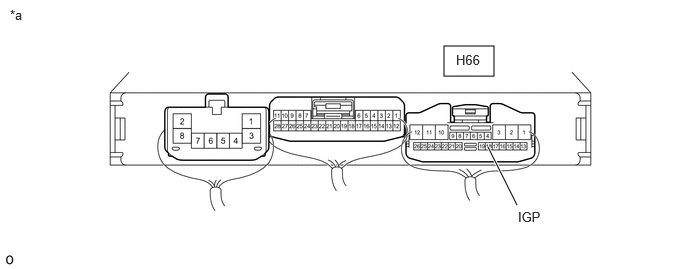

    GTY1105201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component with harness connected
    (Engine Stop and Start ECU)    		 - -
    1. Turn the ignition switch to ON.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      H66-18 (IGP) - Body ground Ignition switch ON 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  5

    Result:

    OK

    See step  3

  3. CHECK ENGINE STOP AND START ECU (+B TERMINAL VOLTAGE)

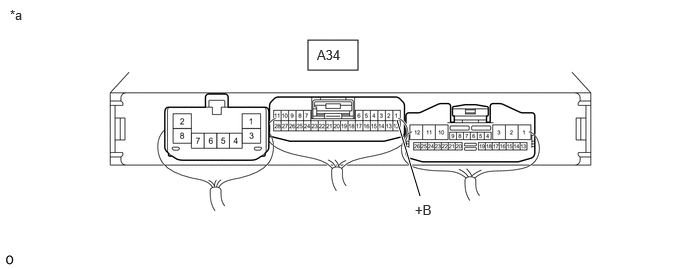

    GTY1108771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component with harness connected
    (Engine Stop and Start ECU)    		 - -
    1. Turn the ignition switch to ON.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A34-1 (+B) - Body ground Ignition switch ON 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU

    Refer to REMOVAL [10/2022 - 11/2023]

    Result:

    NG

    See step  4

  4. CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - EFI MAIN NO. 1 RELAY)
    1. Disconnect the engine stop and start ECU connector.
    2. Remove the EFI-MAIN NO. 1 relay from the No. 1 engine room relay block and No. 1 junction block assembly.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A34-1 (+B) - 5 (EFI-MAIN NO. 1 relay holder) Always Below 1 Ω
      A34-1 (+B) - Body ground and other terminals Always 10 kΩ or higher
      5 (EFI-MAIN NO. 1 relay holder) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    GO TO ECM POWER SOURCE CIRCUIT

    Refer to ECM Power Source Circuit [10/2022 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  5. CHECK HARNESS AND CONNECTOR (ENGINE STOP AND START ECU - IG2-NO. 2 RELAY)
    1. Disconnect the engine stop and start ECU connector.
    2. Remove the IG2-NO. 2 relay from the No. 1 engine room relay block and No. 1 junction block assembly
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H66-18 (IGP) - 3 (IG2-NO. 2 relay holder) Always Below 1 Ω
      H66-18 (IGP) - Body ground and other terminals Always 10 kΩ or higher
      3 (IG2-NO. 2 relay holder) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    GO TO SMART ACCESS SYSTEM

    Refer to Power Source Mode does not Change to ON (IG) [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
