Stop And Start System - Diagnostic Codes (2 Of 3)
>>
Stop And Start System
>>
DTC P2796-12: Electromagnetic Oil Pump Circuit Short to Battery [12/2019 - 10/2022]
>>

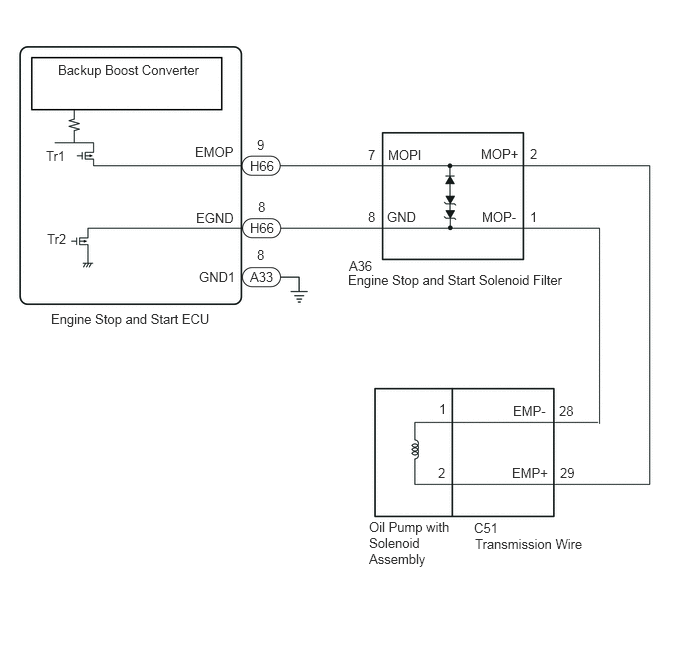

Wiring Diagram
DTC P2796-12: Electromagnetic Oil Pump Circuit Short to Battery [12/2019 - 10/2022]: Wiring Diagram
