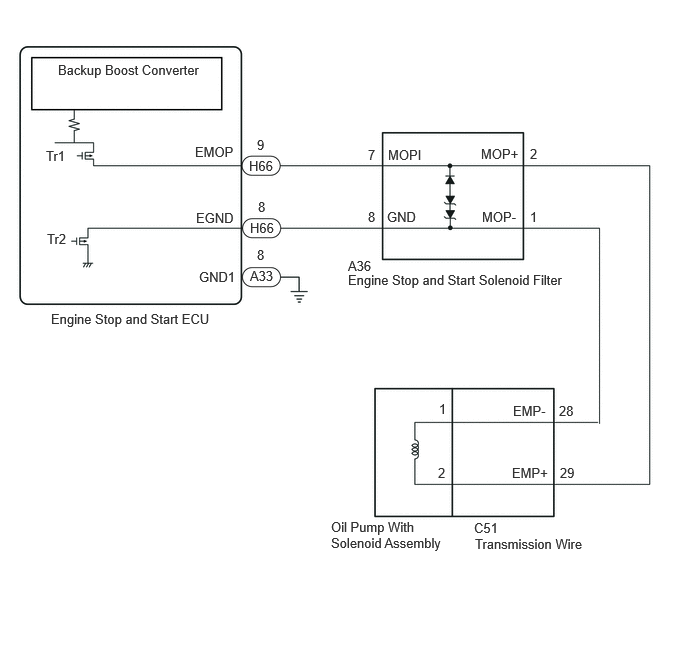

DTC P2796-12: Electromagnetic Oil Pump Circuit Short to Battery [10/2022 - ]: Wiring Diagram

GTY1103391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
