Reassembly [12/2019 - 10/2022]: Procedure

  1. INSTALL PLANETARY GEAR

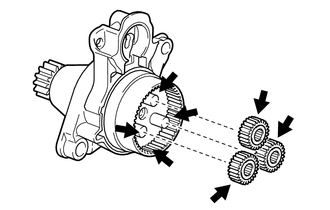

    1. Apply high-temperature grease to the 3 planetary gears, 3 planetary gear shafts and starter drive housing assembly.
      GTY868294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      High-temperature Grease
    2. Install the 3 planetary gears to the starter drive housing assembly.
  2. INSTALL RUBBER SEAL
    1. Install the rubber seal to the starter drive housing assembly.
      GTY314632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL STARTER ARMATURE ASSEMBLY
    1. Secure the starter commutator end frame assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

    2. Apply high-temperature grease to the starter armature shaft.
      GTY442069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      High-temperature Grease
    3. Apply high-temperature grease to the washer and bearing as shown in the illustration.
      GTY430882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      High-temperature Grease
    4. Install the starter armature assembly to the starter commutator end frame assembly.
    5. Using snap ring pliers, install the washer and a new snap ring.
      NOTE:
      • Be sure to install the snap ring in the starter armature shaft groove securely.
      • Do not expand the snap ring excessively.

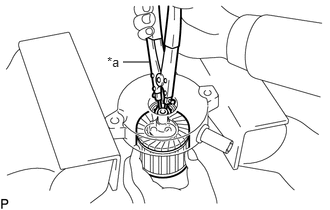

      GTY458197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Snap Ring Pliers
    6. Using a vernier caliper, measure the width of the snap ring end gap as shown in the illustration.
      GTY436451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Width

      Maximum Width

      5.0 mm (0.197 in.)

      If the width is greater than the maximum, replace the snap ring with a new one.

  4. INSTALL STARTER COMMUTATOR END FRAME COVER
    1. Install the starter commutator end frame cover to the starter commutator end frame assembly.
      GTY191557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL STARTER ARMATURE PLATE
    1. Insert the starter armature plate to the starter yoke assembly.
      GTY446921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Keyway
      *b Key
    2. Align the keyway of the starter armature plate with the key inside the starter yoke assembly, and install the starter armature plate.
  6. INSTALL STARTER COMMUTATOR END FRAME ASSEMBLY

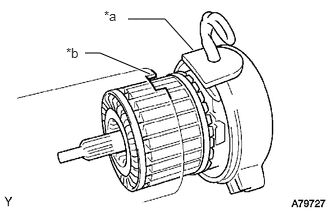

    GTY447035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Rubber
    *b Cutout
    1. Align the rubber of the starter commutator end frame assembly with the cutout of the starter yoke assembly.
    2. Install the starter commutator end frame assembly to the starter yoke assembly.
      NOTE:

      The magnet of the starter yoke assembly may attract the starter armature assembly when the starter commutator end frame assembly is installed, causing the magnet to break.

  7. INSTALL STARTER YOKE ASSEMBLY
    1. Align the protrusion of the starter yoke assembly with the cutout of the starter drive housing assembly.
      GTY449129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Cutout
    2. Install the starter yoke assembly with the 2 through bolts.

      Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

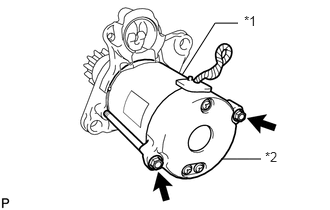

      GTY897025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly
      *2 Starter Commutator End Frame Assembly
  8. INSTALL MAGNET STARTER SWITCH ASSEMBLY
    1. Apply high-temperature grease to the magnet starter switch assembly.

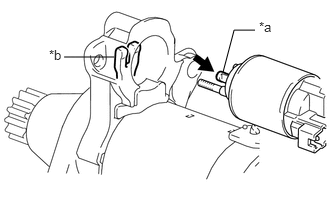

      GTY871490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Pinion Drive Lever
      High-temperature Grease
    2. Hang the hook of the magnet starter switch assembly on the pinion drive lever.
    3. Install the magnet starter switch assembly with the 2 nuts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

      GTY312234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the field coil lead wire to terminal C with the nut.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      GTY264745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
