Removal [12/2019 - 09/2020]: Procedure

  1. REMOVE BATTERY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 24

  4. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 25

  5. REMOVE ECM

    Refer to PROCEDURE - Step 5

  6. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30

  7. REMOVE STARTER ASSEMBLY

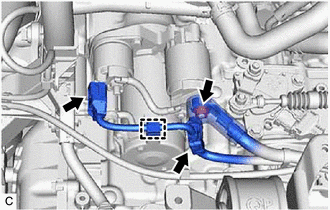

    1. Disconnect the 2 starter assembly connectors.
      GTY936905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.
    3. Open the terminal cap.
    4. Remove the nut and disconnect the engine wire from the terminal 30.
    5. Type A:
      GTY886929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and starter assembly.

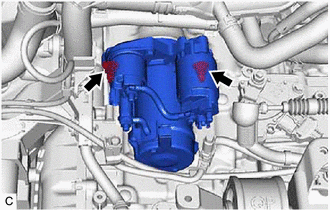

    6. Type B:
      GTY886926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 nuts.
      2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and starter assembly.

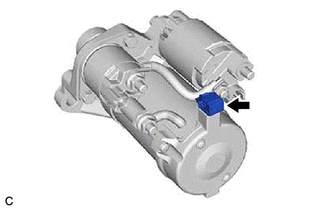

    7. Remove the wire harness clamp.
      GTY888257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
