Disassembly [12/2019 - 10/2022]: Procedure

  1. REMOVE WIRE HARNESS

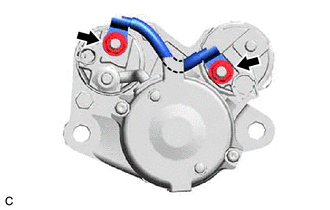

    1. Remove the 2 nuts and wire harness from the starter assembly.
      GTY888258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE STARTER INRUSH CURRENT REDUCTION RELAY

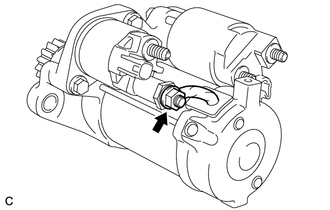

    1. Remove the nut and disconnect the field coil lead wire from terminal M.
      GTY888259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

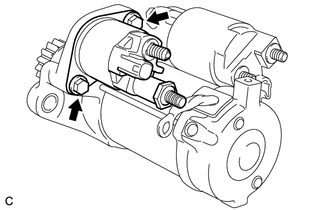

    2. Remove the 2 bolts and starter inrush current reduction relay from the starter drive housing assembly.
      GTY888265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE MAGNET STARTER SWITCH ASSEMBLY

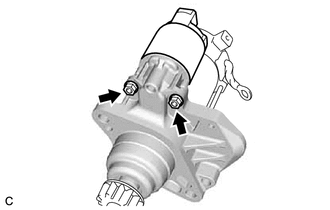

    1. While holding the magnet starter switch assembly to the starter drive housing assembly, remove the 2 nuts.
      GTY937209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While lifting the rear of the magnet switch, remove the hook from the pinion drive lever, then remove the magnet starter switch assembly.
      GTY844994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Pinion Drive Lever
      *a Hook
  4. REMOVE STARTER YOKE ASSEMBLY

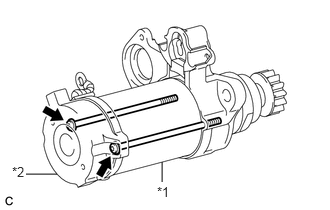

    1. Using a T25 "TORX" socket wrench, remove the 2 through bolts, and pull out the starter yoke assembly together with the starter commutator end frame assembly.
      GTY924372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly
      *2 Starter Commutator End Frame Assembly
  5. REMOVE STARTER COMMUTATOR END FRAME ASSEMBLY
    1. Remove the 2 screws.
      GTY888262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While holding down the field coil lead wire, remove the starter commutator end frame assembly from the starter yoke assembly.
      GTY905973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly
      *2 Starter Commutator End Frame Assembly
      *a Field Coil Lead Wire
  6. REMOVE STARTER BRUSH HOLDER ASSEMBLY
    1. Using a screwdriver, hold the brush spring back and disconnect the 4 brushes.
      GTY714566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Brush Spring
      *b Brush
    2. Remove the starter brush holder assembly from the starter armature assembly.
  7. REMOVE STARTER ARMATURE ASSEMBLY
    1. Remove the starter armature assembly from the starter yoke assembly.
      GTY694257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly
      *2 Starter Armature Assembly
  8. REMOVE STARTER ARMATURE PLATE

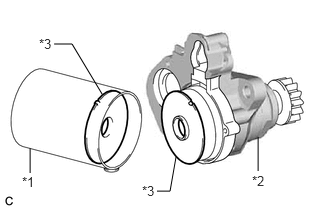

    1. Remove the starter armature plate from the starter drive housing assembly or starter yoke assembly.
      GTY708208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly
      *2 Starter Drive Housing Assembly
      *3 Starter Armature Plate
  9. REMOVE PLANETARY GEAR

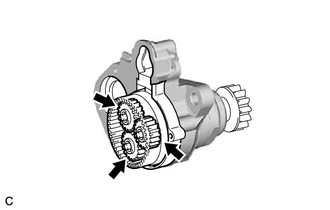

    1. Remove the 3 planetary gears from the starter drive housing assembly.
      GTY732004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE RUBBER SEAL

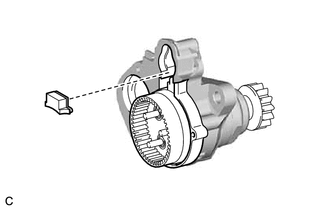

    1. Remove the rubber seal from the starter drive housing assembly.
      GTY691505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
