Engine Compartment

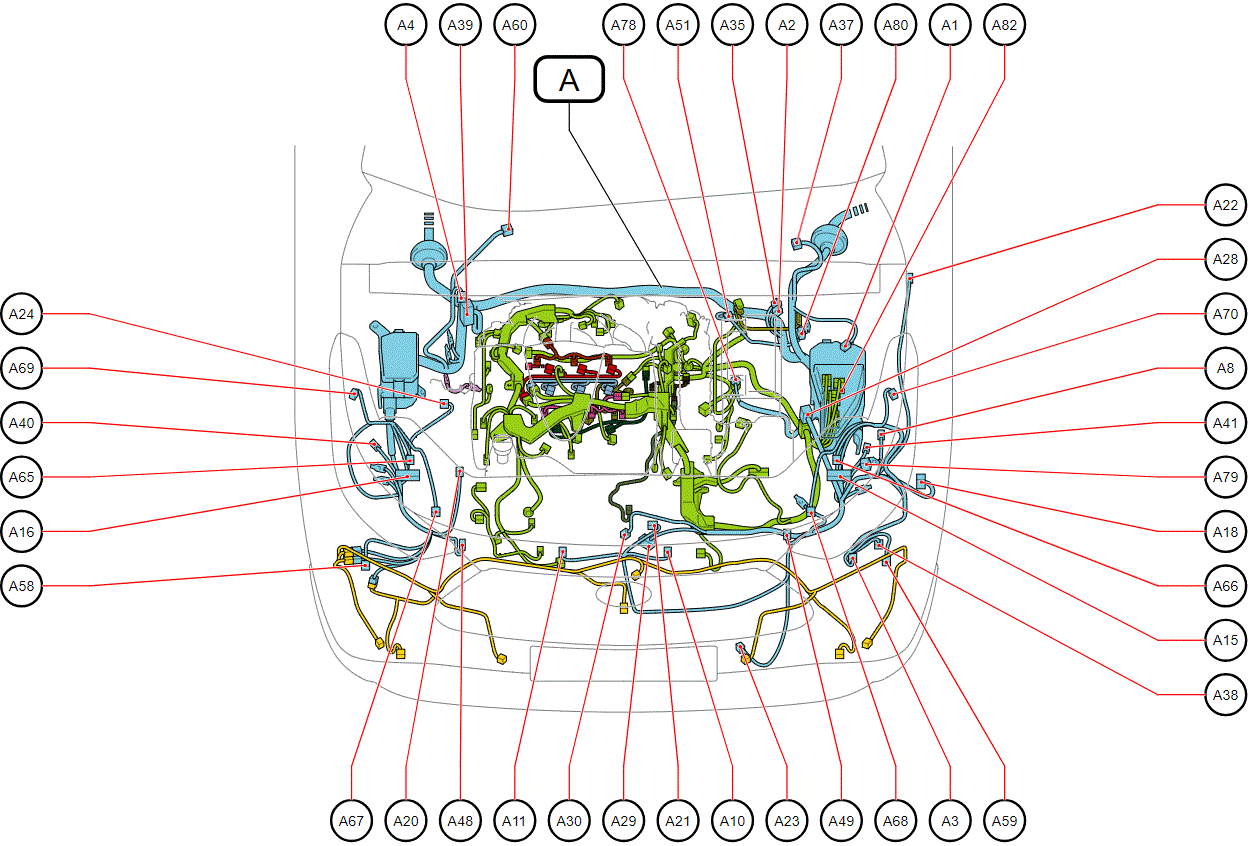

Fig 1: Engine Compartment (Except Hybrid) Components Location (1 of 3)
G00673909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

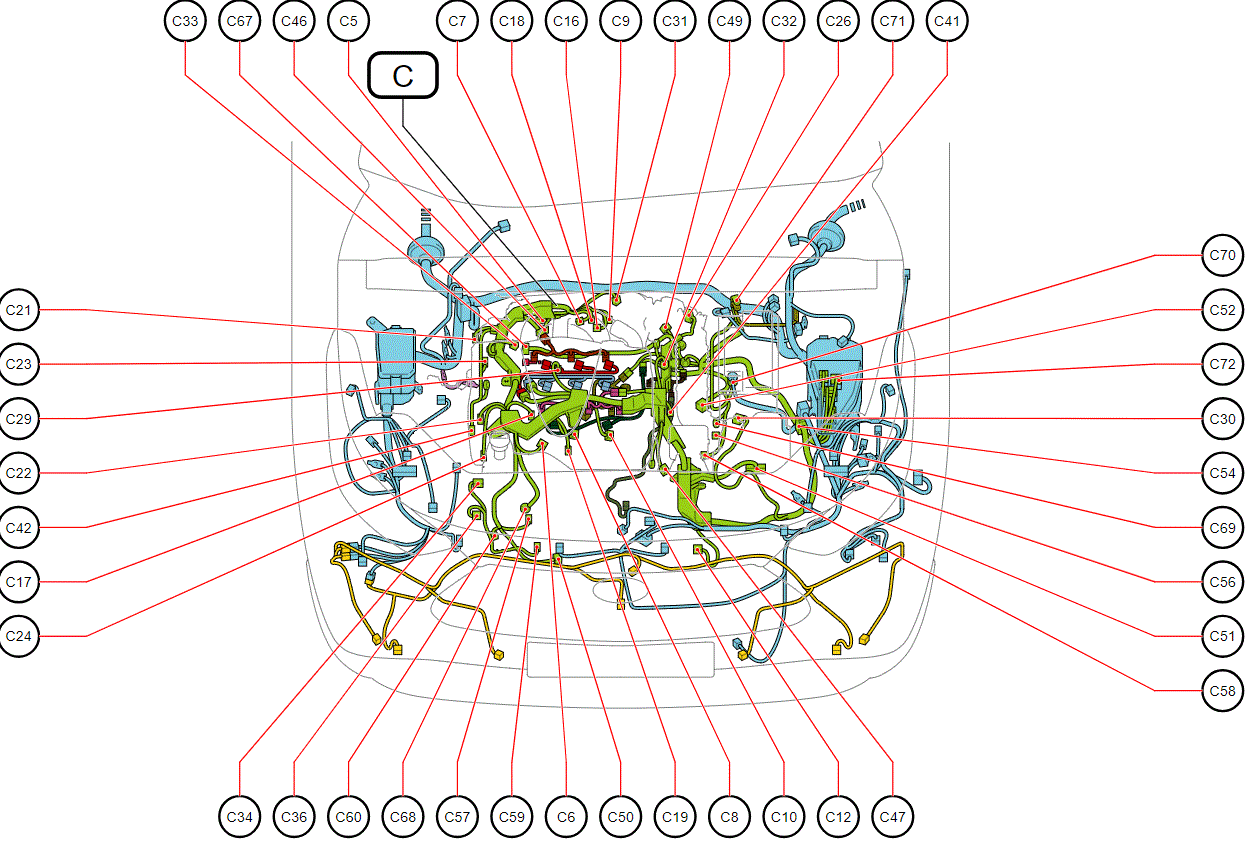

Fig 2: Engine Compartment (Except Hybrid) Components Location (2 of 3)
G00673834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

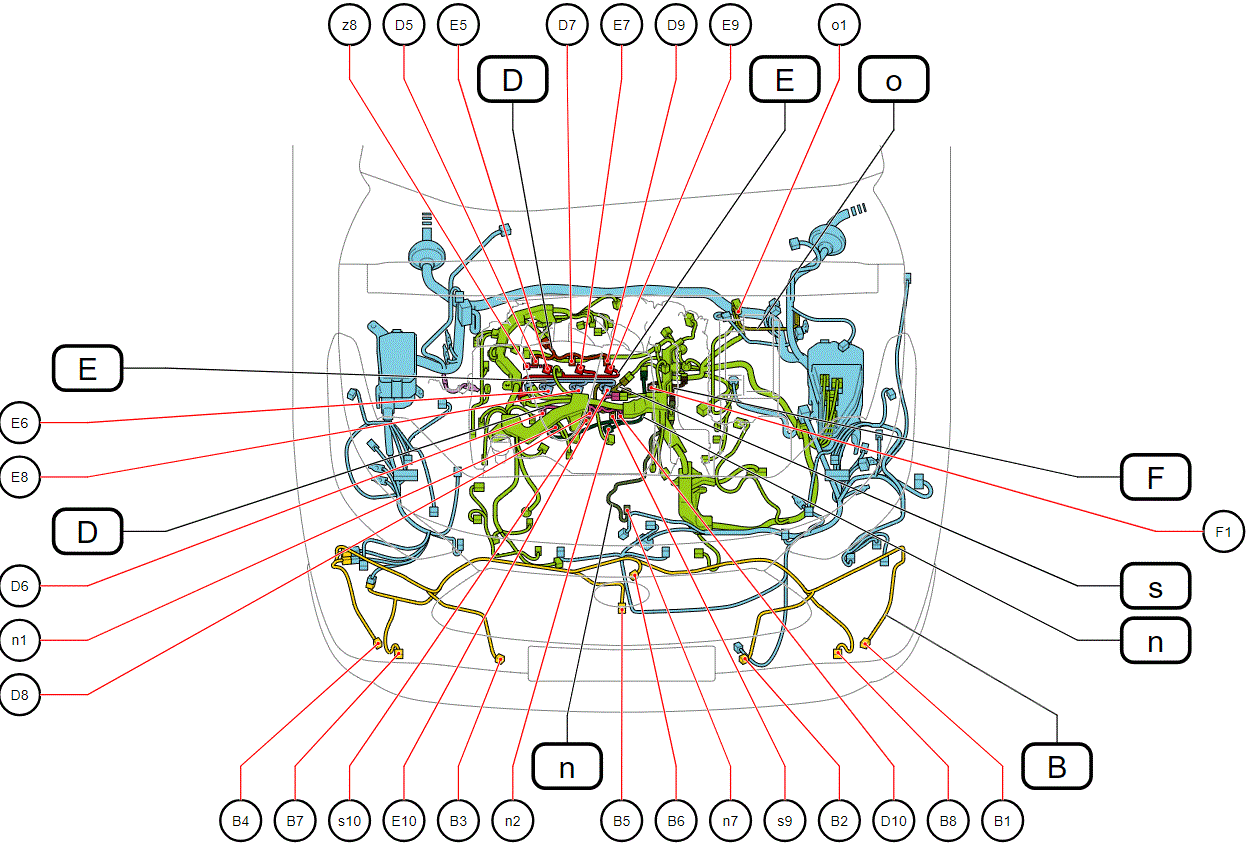

Fig 3: Engine Compartment (Except Hybrid) Components Location (3 of 3)
G00673838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

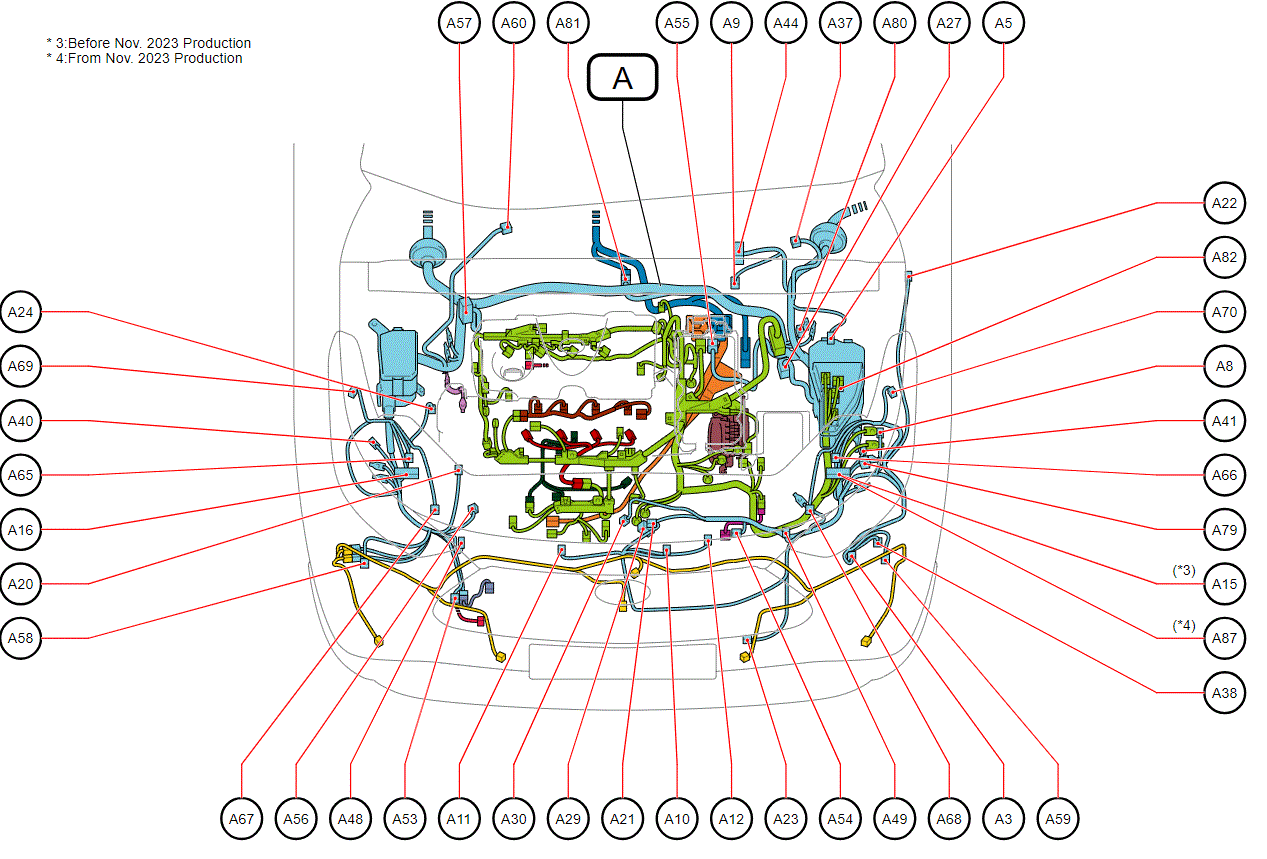

Fig 4: Engine Compartment (Hybrid) Components Location (1 of 3)
G00673897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

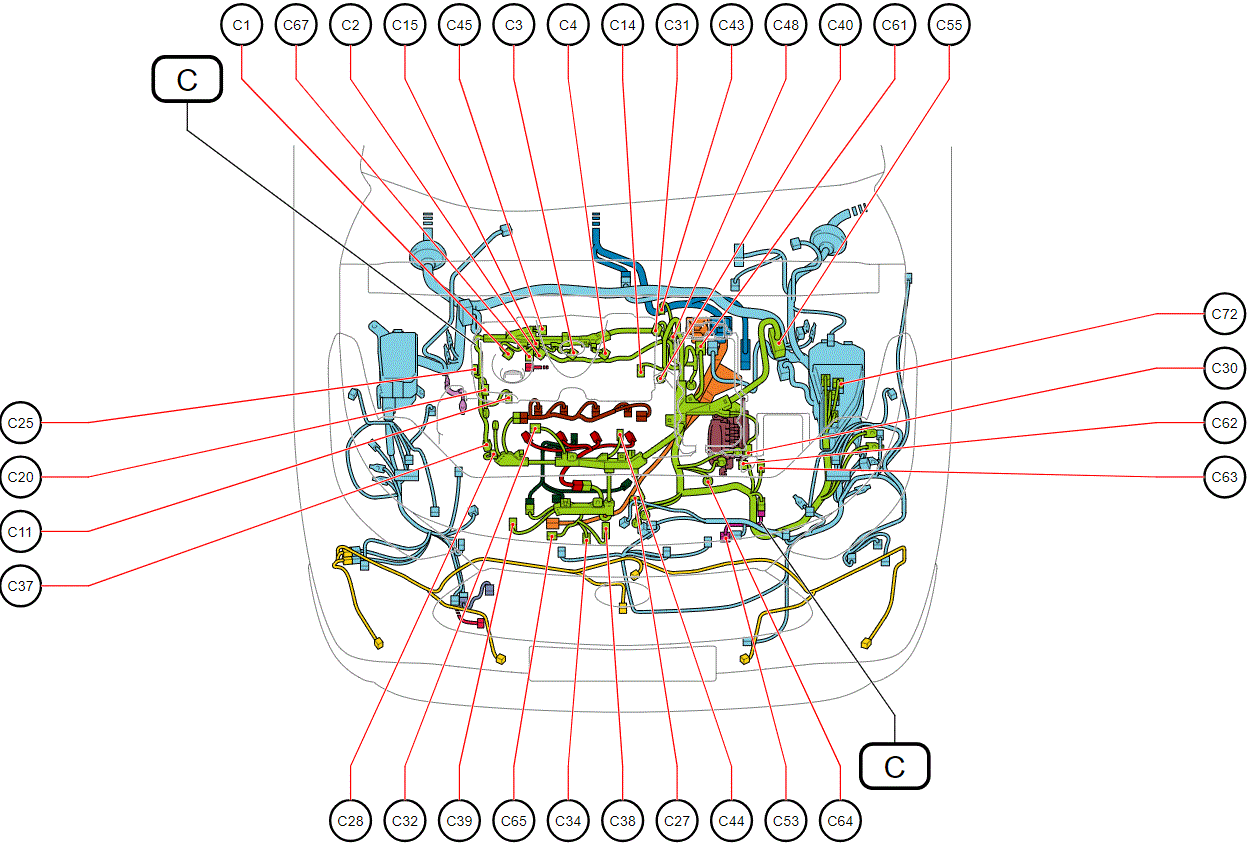

Fig 5: Engine Compartment (Hybrid) Components Location (2 of 3)
G00673901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

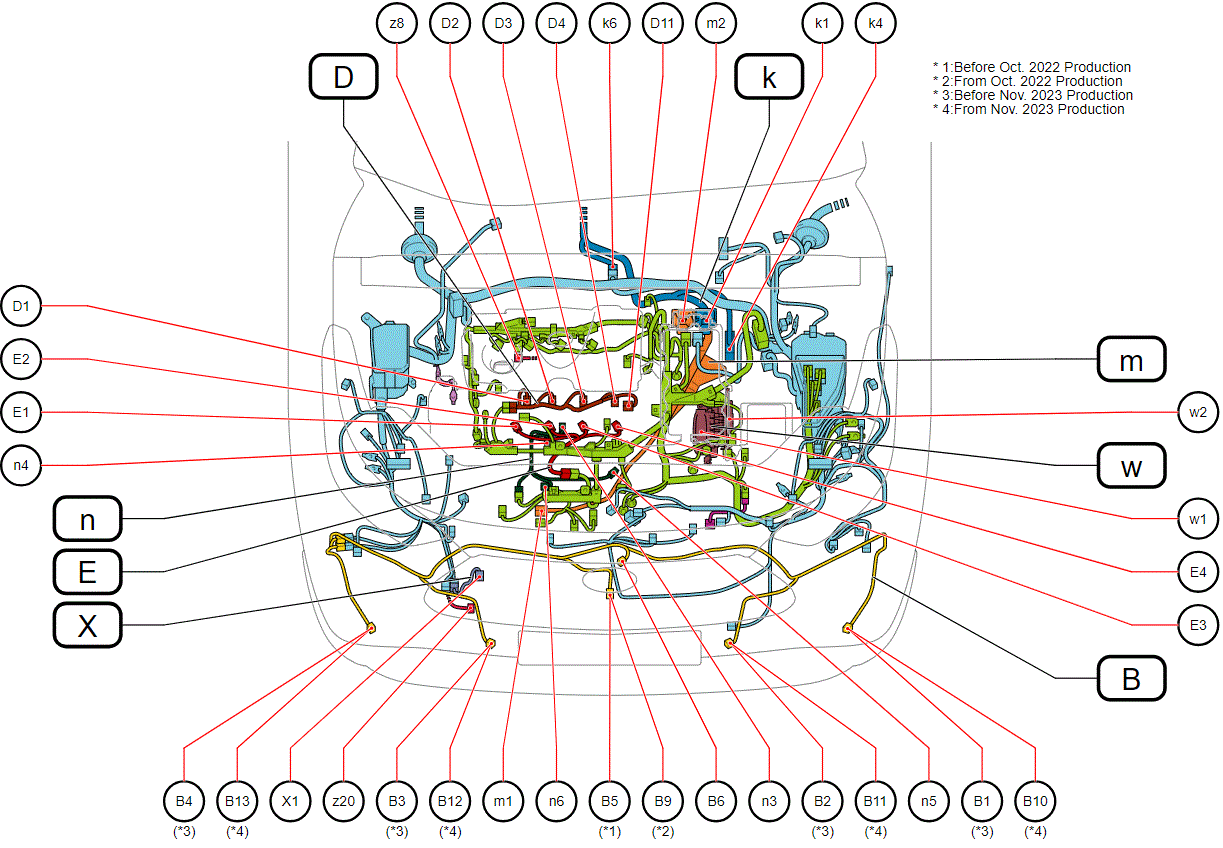

Fig 6: Engine Compartment (Hybrid) Components Location (3 of 3)
G00673905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
