Relay Block, Junction Block & Ecu Locations: Seat

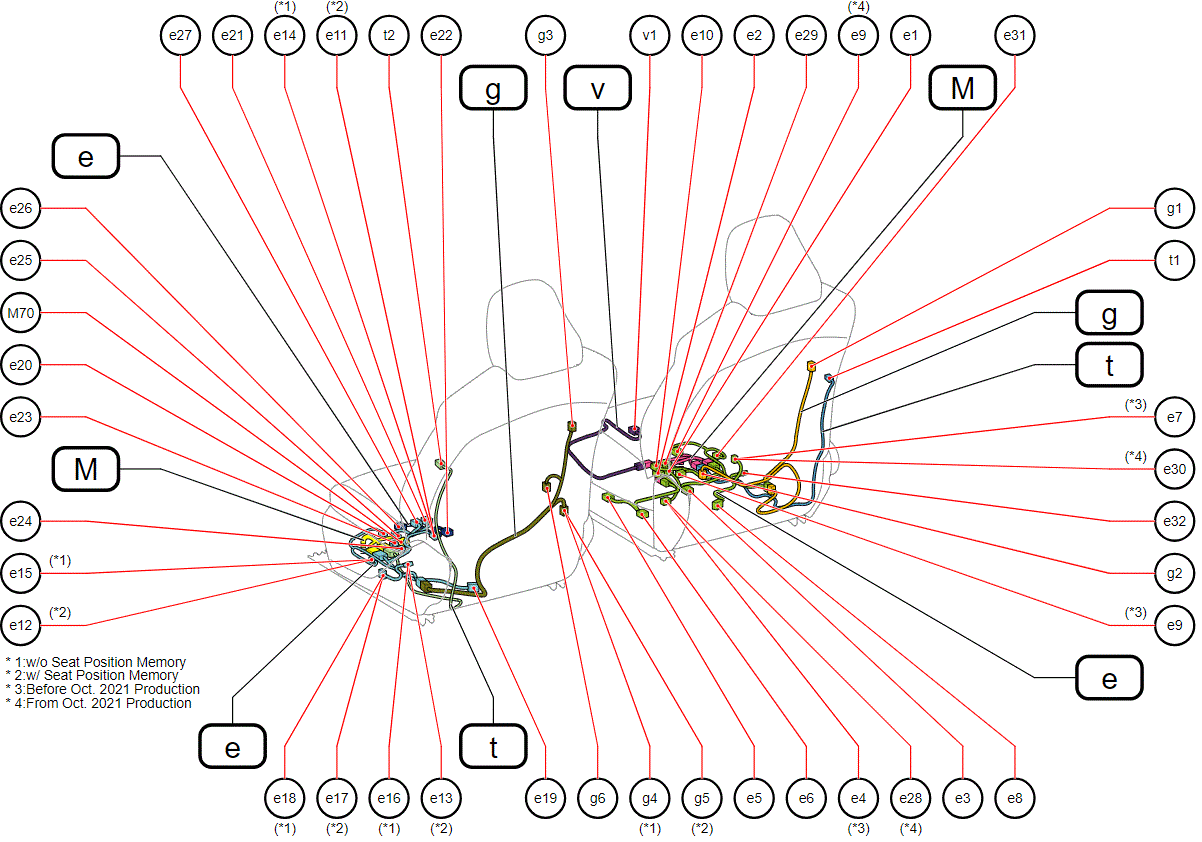

Fig 1: Seat ECU (Front) Components Location
G00673881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

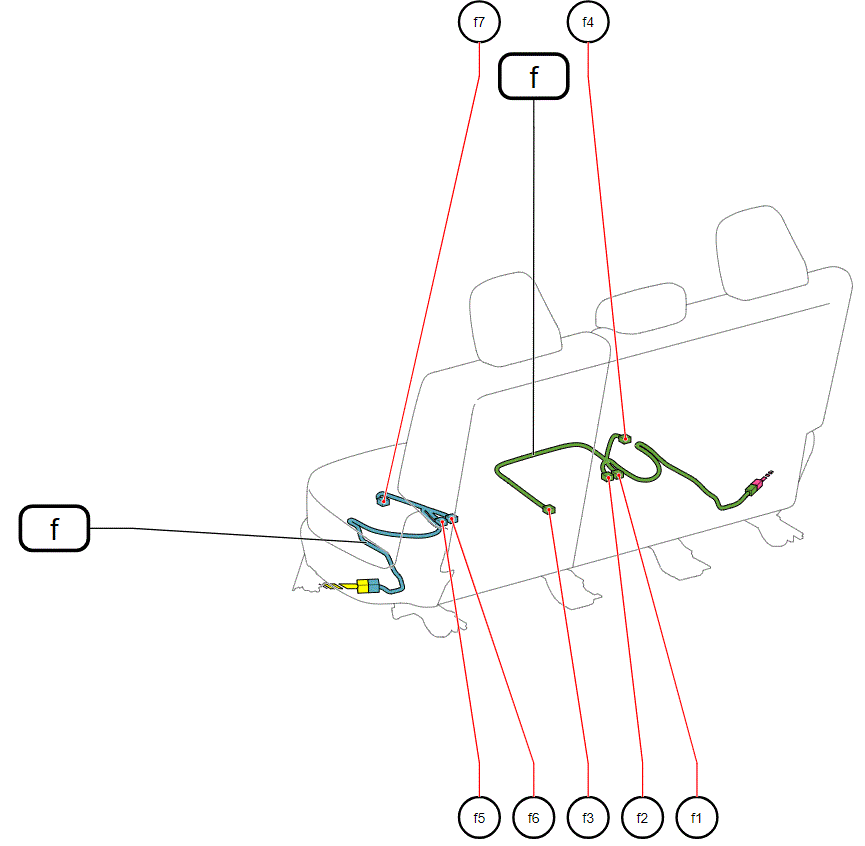

Fig 2: Seat ECU (Rear No. 1 Seat Bench Seat Type) Components Location
G00673885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

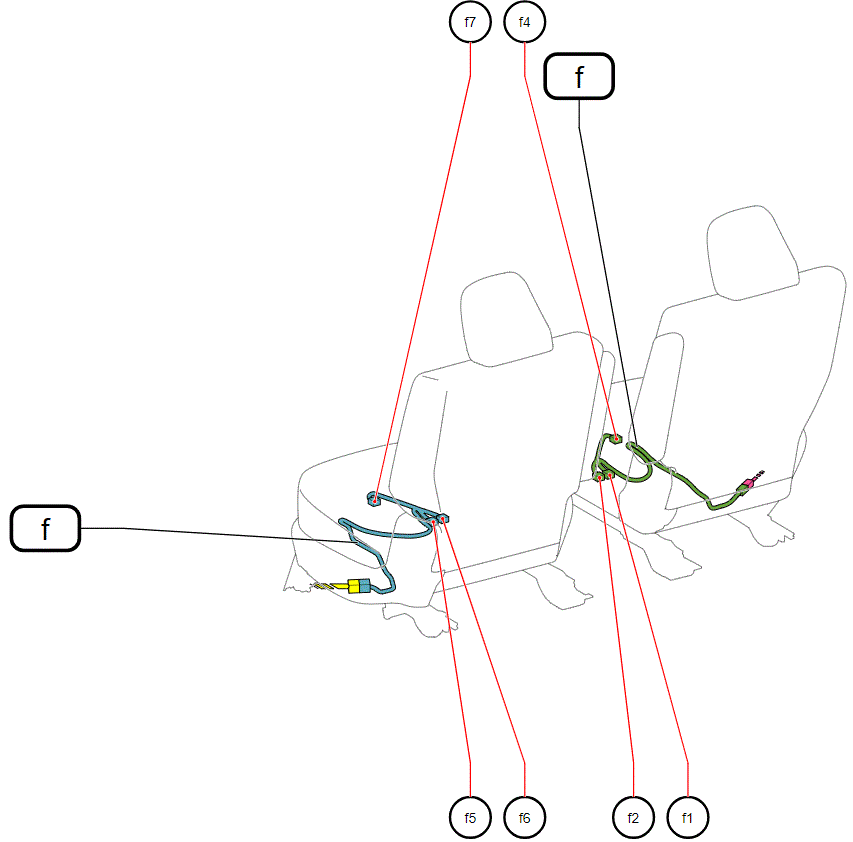

Fig 3: Seat ECU (Rear No. 1 Seat Separate Seat Type) Components Location
G00673889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
