Removal [11/2023 - ]: Procedure
- REMOVE INSTRUMENT PANEL SAFETY PAD
Refer to REMOVAL [11/2023 - ]
- REMOVE NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER (for HV Model)
Refer to PROCEDURE - Step 2
- REMOVE ECU INTEGRATION BOX LH
Refer to PROCEDURE - Step 4
- REMOVE POWER DISTRIBUTION BOX ASSEMBLY WITH MAIN BODY ECU

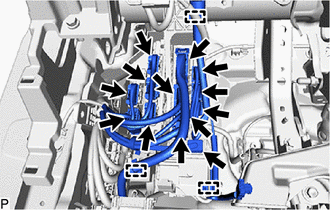

- Disconnect each connector.

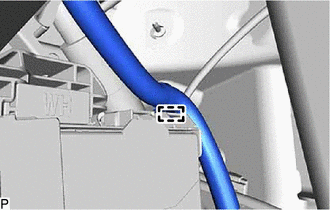

- Disengage the 3 clamps.

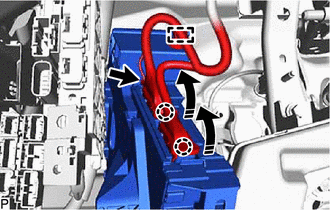

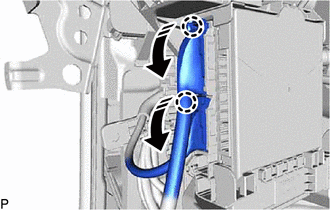

- Disengage the 2 claws and pull down the 2 lock levers to disconnect the 2 connectors as shown in the illustration.

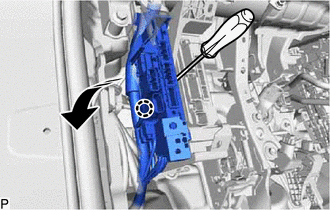

Remove in this Direction - Using a screwdriver, disengage the claw as shown in the illustration.

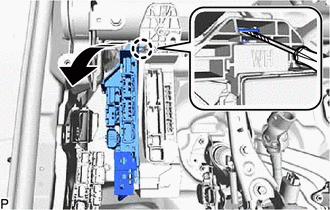

Remove in this Direction - Using a screwdriver, disengage the claw as shown in the illustration.

Remove in this Direction - Disengage the 2 guides.

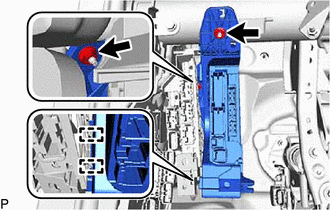

- Remove the 2 nuts.
- Pull out the power distribution box assembly with main body ECU.
- Disengage the clamp.
- Disengage the clamp.

Remove in this Direction - Disconnect the connector.
- Disengage the 2 claws and raise the 2 lock levers to disconnect the 2 connectors as shown in the illustration and remove the power distribution box assembly with main body ECU.
- Disconnect each connector.
- REMOVE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

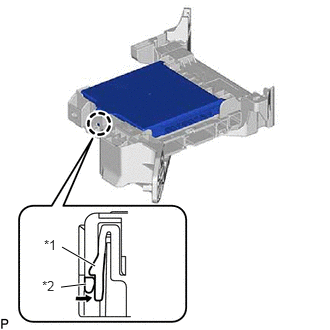

- Press the claw of the power distribution box assembly as shown in the illustration to release the lock.
*1 Power Distribution Box Assembly *2 Main Body ECU (Multiplex Network Body ECU)

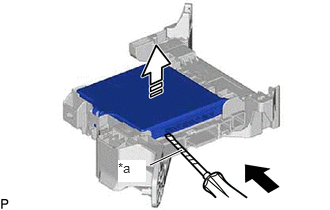

Push in this Direction - With the power distribution box assembly lock released, insert a screwdriver with its tip wrapped with protective tape horizontally between the main body ECU (multiplex network body ECU) and power distribution box assembly.
*a Protective Tape
Insert in this Direction
Remove in this Direction NOTE:- Use a screwdriver with a diameter between 5.0 mm (0.197 in.) and 6.3 mm (0.248 in.) and a length of approximately 90 mm (3.54 in.).
- Do not insert the screwdriver under the connector socket of the main body ECU (multiplex network body ECU).
- Using the screwdriver, carefully raise the main body ECU (multiplex network body ECU) to the position where the connector becomes disconnected.NOTE:
Do not twist the screwdriver to raise the main body ECU (multiplex network body ECU).

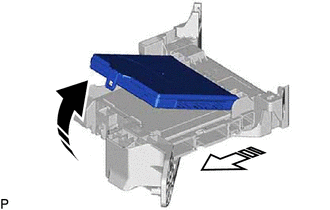

- Raise the main body ECU (multiplex network body ECU) as shown by the arrow (1), and then pull it out as shown by the arrow (2) in the illustration.

Remove in this Direction (1)
Remove in this Direction (2) NOTE:Do not touch the main body ECU (multiplex network body ECU) connector.
- Press the claw of the power distribution box assembly as shown in the illustration to release the lock.
